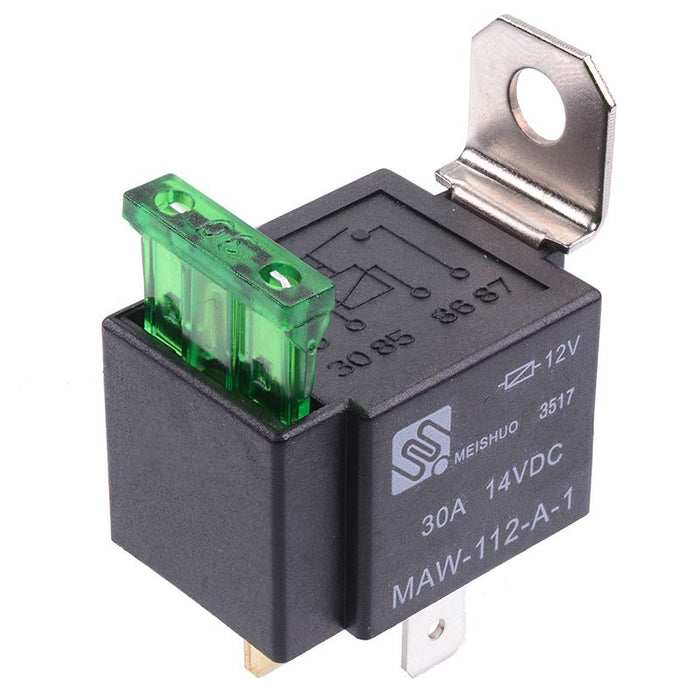

12V Automotive Fused Relay 30A 4-Pin SPNO

by Meishuo
SKU 309009

MPN: MAW-112-A-1

Availability:
496 in stock
Original price £2.99 - Original price £2.99
Original price
£2.99 Inc VAT
£2.99 - £2.99
Current price £2.99 Inc VAT
Automotive SPNO relay with 4-pins and 30A blade fuse to protect the circuit. The relay features a metal mounting bracket and are suitable for automotive and lamp accessory applications.

  • Contact Rating: 30A 14VDC
  • Coil voltage: 12VDC
  • Coil power: 1.8W
  • Includes 30A blade fuse
  • SPNO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 34.6 x 25.2 x 21mm
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 120 Days
    Coil resistance 80Ω
    Coil voltage 12VDC
    Contact arrangement SPNO
    Maximum switching current 30A
    Maximum switching voltage 75VDC
    Mounting type Plug In
    Number of contacts 4
    Power consumption 1.8W
    Terminal type Quick Connect
