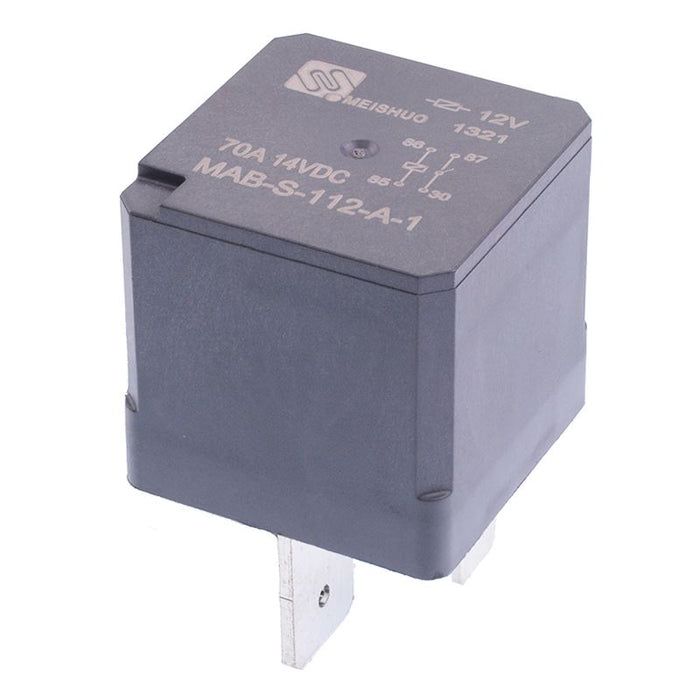

12V SPNO High Power Automotive Relay 70A MAB-S-112-A-1
by Meishuo
SKU 483137
MPN: MAB-S-112-A-1
Availability:
209 in stock
Original price
£2.22
-
Original price
£2.22
Original price
£2.22
£2.22
-
£2.22
Current price
£2.22
12V high power relay featuring SPNO contacts suitable for general purpose automotive applications. The relay features a plastic mounting bracket and compact sealed construction providing protection againt water and dust.
Maximum switching current: 70A Maximum switching voltage: 50VDC Coil voltage: 24VDC Coil power: 1.6W SPNO contacts Excellent shock and vibration resistance Wide temperature range Body dimensions: 26 x 26 x 25mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 680Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 70A |
| Maximum Switching Voltage | 50VDC |
| Mounting Type | Plug In |
| Number of Contacts | 4 |
| Power Consumption | 1.6W |
| Terminal Type | Quick Connect |
