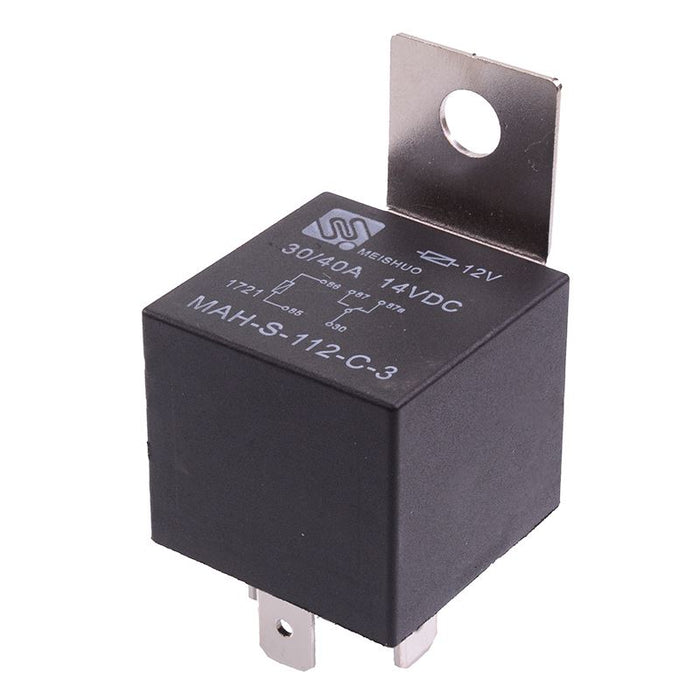

12V Automotive Relay 40A Metal Bracket SPDT 5-Pin
by Meishuo
SKU 550454
MPN: MAH-S-112-C-3
Availability:
1701 in stock, ready to be shipped
Original price
£1.63
-
Original price
£1.63
Original price
£1.63
Inc VAT
£1.63
-
£1.63
Current price
£1.63
Inc VAT
Automotive changeover relay with 5-pins and SPDT contacts suitable for general purpose automotive applications. The relay features a metal mounting bracket and has a compact sealed construction to protect from water and damp.
Maximum switching current: 40A Maximum switching voltage: 80VDC Coil voltage: 12VDC Coil power: 1.6W Sealed IP67 construction SPDT contacts Excellent shock and vibration resistance Wide temperature range Body dimensions: 28 x 28 x 25mm
Specification
| Ambient temperature | -40°C to +85°C |
| Coil resistance | 90Ω |
| Coil voltage | 12VDC |
| Contact arrangement | SPDT |
| Maximum continuous voltage | 15.7VDC |
| Maximum switching current | 40A |
| Maximum switching voltage | 80VDC |
| Mounting type | Plug In |
| Number of contacts | 5 |
| Power consumption | 1.6W |
| Terminal type | Quick Connect |
