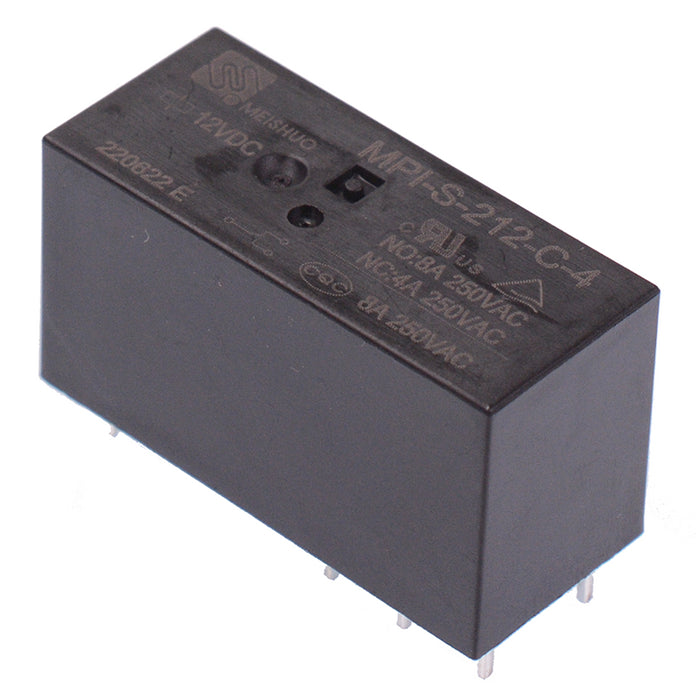

12V High Power PCB Relay 8A DPDT
by Meishuo
SKU 485809
MPN: MPI-S-212-C-4
Availability:
337 in stock
Original price
£3.04
-
Original price
£3.04
Original price
£3.04
Inc VAT
£3.04
-
£3.04
Current price
£3.04
Inc VAT
12V miniature high power relay featuring DPDT contacts and 8A maximum switching current, suitable for PCB mounting.
12V coil voltage DPDT contact configuration Sealed construction Rated load: 8A 250VAC Maximum switching current: 8A Maximum switching voltage: 440VAC / 30VDC Maximum switching power: 2000VA Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
Specification
| Ambient temperature | -40°C to +105°C |
| Back order lead time | 120 Days |
| Coil resistance | 267Ω |
| Coil voltage | 12VDC |
| Contact arrangement | DPDT |
| Maximum continuous voltage | 15.6VDC |
| Maximum switching current | 8A |
| Maximum switching voltage | 440VAC / 30VDC |
| Mounting type | PCB |
| Number of contacts | 8 |
| Power consumption | 0.53W |
| Terminal type | Through Hole |
