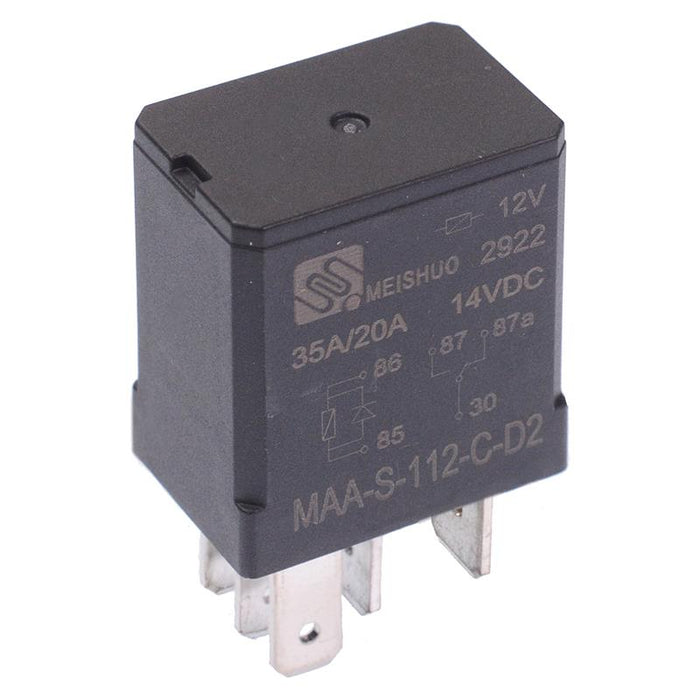

12V Micro Automotive Changeover Relay Diode 30A 5 Pin SPDT

by Meishuo
SKU 485806

MPN: MAA-S-112-C-D2

Availability:
442 in stock
Original price £2.29 - Original price £2.29
Original price
£2.29 Inc VAT
£2.29 - £2.29
Current price £2.29 Inc VAT
12V SPDT micro relay featuring 5 terminals and a compact sealed package. The relay features a diode across the coil protecting equipment against voltage spikes, making it suitable for automotive applications.

  • Maximum switching current: 35A
  • Maximum switching voltage: 40VDC
  • Coil voltage: 12VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPDT contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 20.1 x 15.1 x 22.2mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 90Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 15VDC
    Maximum switching current 35A
    Maximum switching voltage 40VDC
    Mounting type Plug In
    Number of contacts 5
    Power consumption 1.8W
    Terminal type Quick Connect
