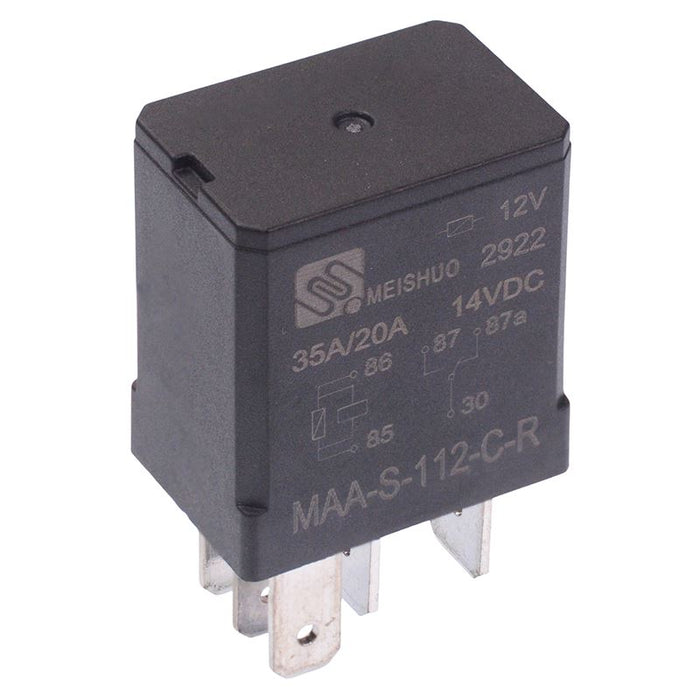

12V SPDT Micro Automotive Relay Resistor 35A MAA-S-112-C-R
by Meishuo
SKU 485805
MPN: MAA-S-112-C-R
Availability:
Out of stock
Sold out
Original price
£1.96
-
Original price
£1.96
Original price
£1.96
£1.96
£1.96
-
£1.96
Current price
£1.96
12V micro automotive relay featuring SPDT contacts and resistor across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 5 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Maximum continuous current: 35A/20A (NO/NC) Contact rating: 14VDC 35A/20A (NO/NC) Coil voltage: 12VDC Coil power: 1.6W Contacts: SPDT Terminals: 6.3mm quick connect Body dimensions: 23.3 x 15 x 25mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 150 |
| Coil Resistance | 90Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Continuous Voltage | 15VDC |
| Maximum Switching Current | 35A |
| Maximum Switching Voltage | 40VDC |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.8W |
| Terminal Type | Quick Connect |
