12V SPNO Micro Automotive Relay 35A MAA-S-112-A
by Meishuo
SKU 552334
MPN: MAA-S-112-A
Availability:
Out of stock
Sold out
Original price
£1.60
-
Original price
£1.60
Original price
£1.60
£1.60
£1.60
-
£1.60
Current price
£1.60

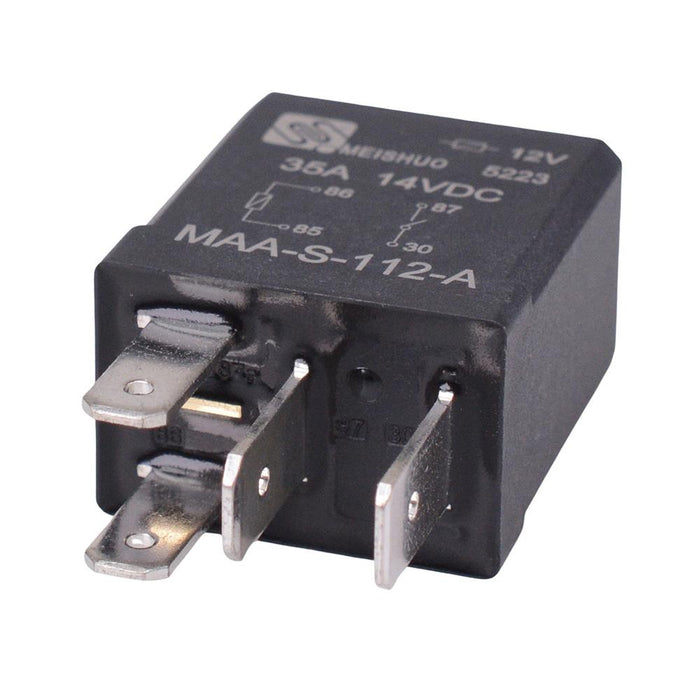

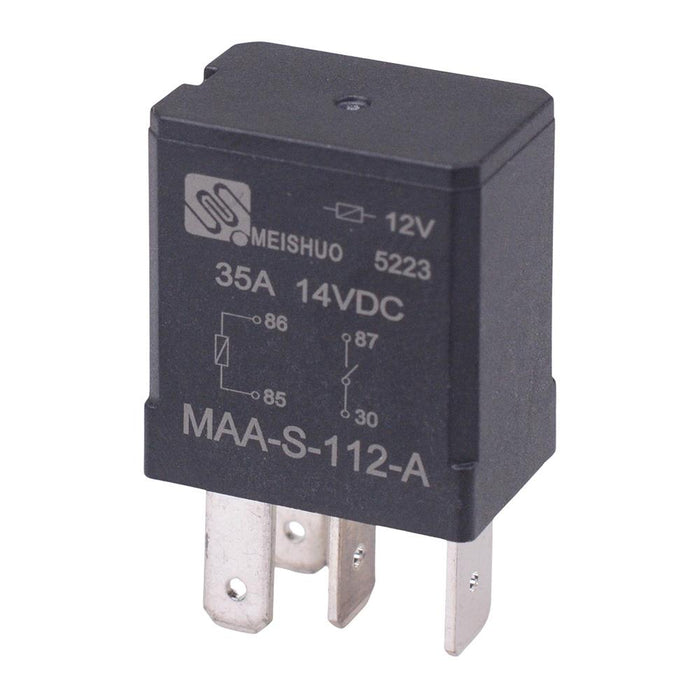

12V micro automotive relay featuring SPNO contacts and 35A continuous current rating. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 4 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Maximum continuous current: 35A Contact rating: 35A 14VDC Coil voltage: 12VDC Coil power: 1.6W Contacts: SPNO Terminals: 6.3mm quick connect Body dimensions: 23.3 x 15 x 25mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 150 |
| Coil Resistance | 90Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Continuous Voltage | 15VDC |
| Maximum Switching Current | 35A |
| Maximum Switching Voltage | 40VDC |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 4 |
| Power Consumption | 1.8W |
| Terminal Type | Quick Connect |
