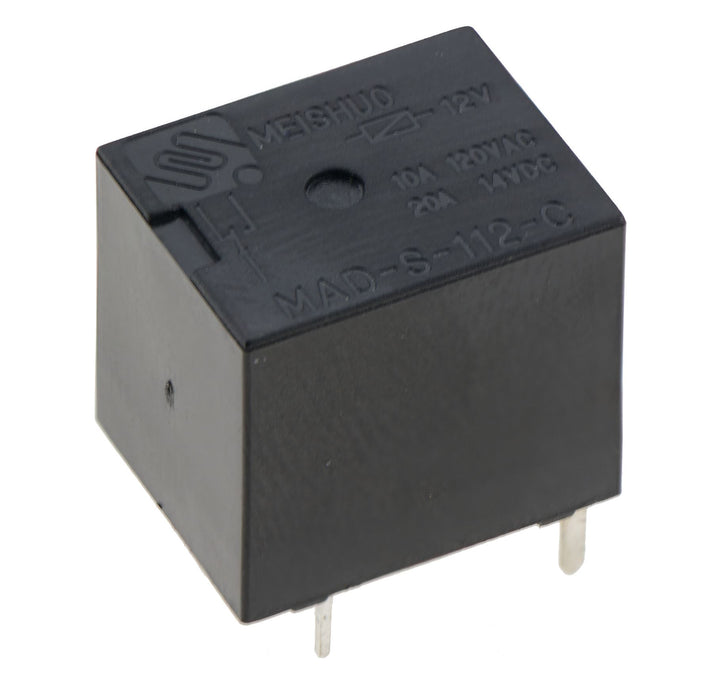

12V SPDT Mini Changeover PCB Power Relay 20A MAD-S-112-C
by Meishuo
SKU 309008
MPN: MAD-S-112-C
Availability:
345 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
£0.55
-
£0.55
Current price
£0.55
12V changeover relay with SPDT contacts suitable for automotive and general purpose applications. The relay is designed for PCB mounting and has a compact sealed design to protect from dust and water.
SPDT contacts High resistance to vibrations Coil voltage: 12VDC Coil power: 600mW Maximum switching current: 20A (at 16VDC) Maximum switching voltage: 60VDC Maximum switching power: 280mW Dimensions: 15.25 x 12.25 x 13.6mm
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 240Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 20A |
| Maximum Switching Voltage | 60VDC |
| Mounting Type | PCB |
| Number of Contacts | 5 |
| Power Consumption | 0.6W |
| Terminal Type | Through Hole |
