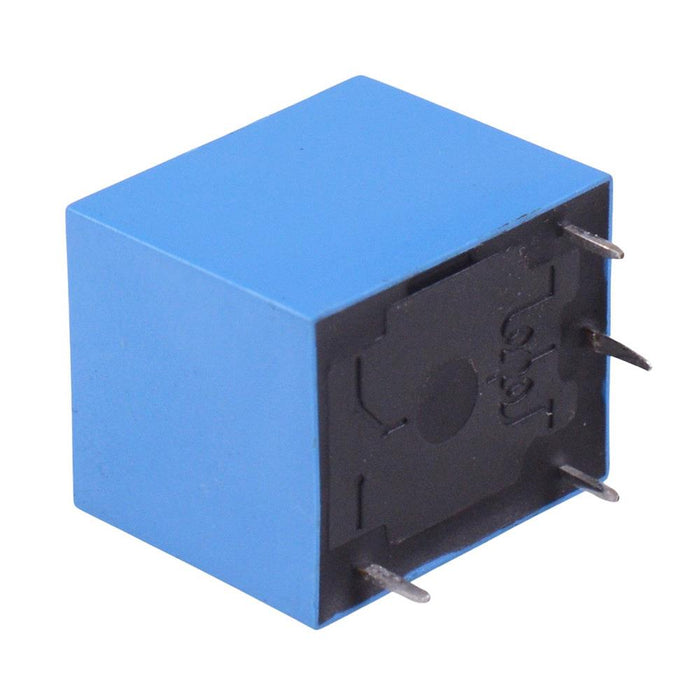

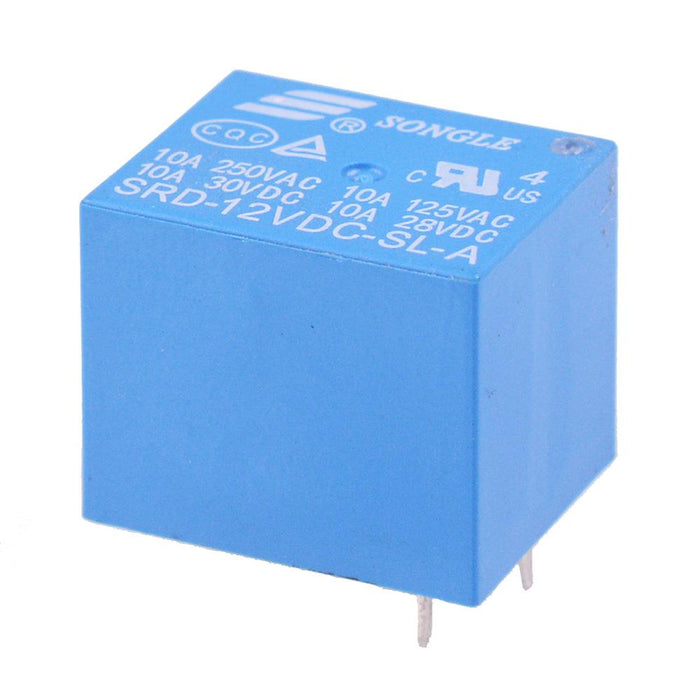

12V Mini Power Songle PCB Relay SPNO 10A SRD-12VDC-SL-A
by Songle
SKU 490366
MPN: SRD-12VDC-SL-A
Availability:
126 in stock
Original price
£0.66
-
Original price
£0.66
Original price
£0.66
£0.66
-
£0.66
Current price
£0.66
12V Songle cube relay featuring SPNO contacts, housed in a compact and sealed package. The relay features 10A current rating and is suitable for a wide range of through hole PCB applications.
Compact and sealed construction Coil voltage: 12VDC Contacts: SPNO Maximum switching current: 10A Maximum switching voltage: 110VDC, 250VAC Coil Power: 0.36W Dimensions: 19 x 15 x 15mm
Specification
Ambient Temperature | -25°C to +70°C |
Back Order Lead Time | 30 Days |
Coil Resistance | 400Ω |
Coil Voltage | 12VDC |
Contact Arrangement | SPNO |
Maximum Continuous Voltage | 14.4VDC |
Maximum Switching Current | 10A |
Maximum Switching Voltage | 250VAC / 110VDC |
MOQ | 1 |
Mounting Type | PCB |
Number of Contacts | 5 |
Power Consumption | 0.36W |
Terminal Type | Through Hole |
