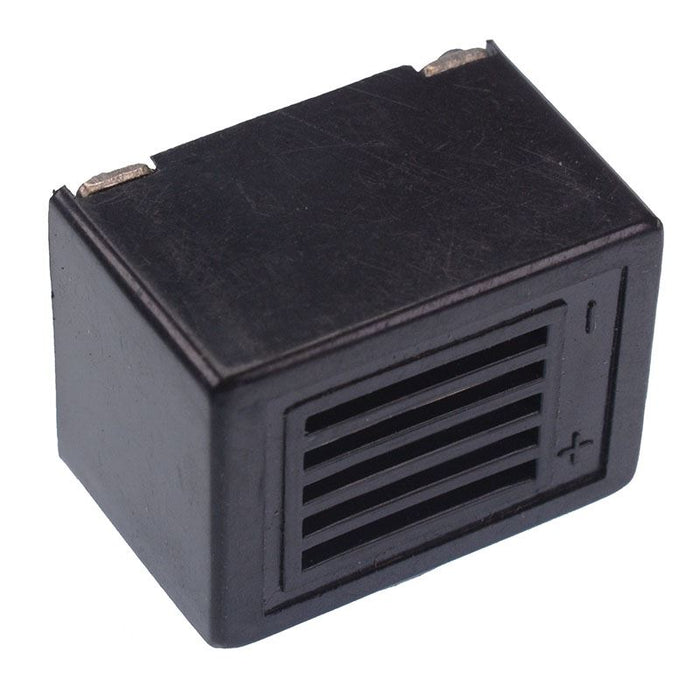

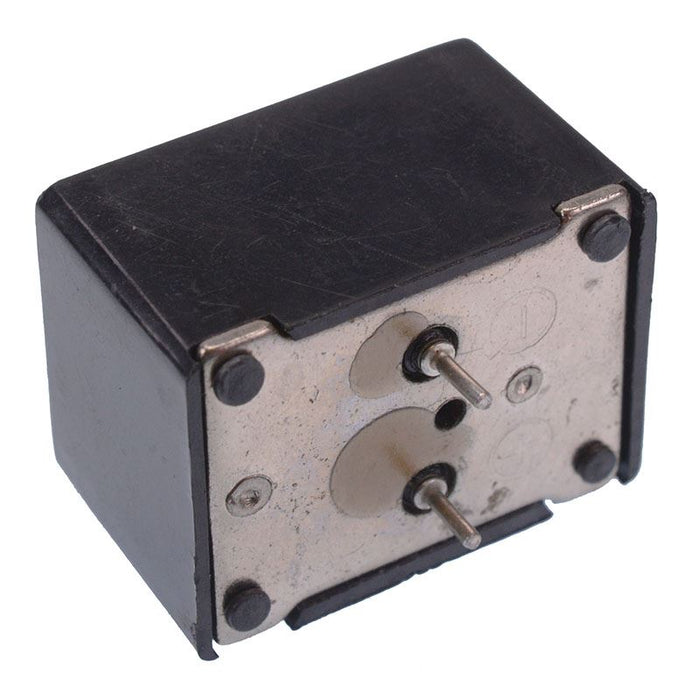

12V PCB Electronic Buzzer

SKU 484789

MPN: 484789

Availability:
459 in stock
Original price £1.31 - Original price £1.31
Original price
£1.31 Inc VAT
£1.31 - £1.31
Current price £1.31 Inc VAT
12V PCB mount electronic buzzer featuring a 7.6mm terminal pitch and 9-15V operating voltage.

  • Operating voltage: 9-15V
  • Rated current: 25mA
  • Sound output @ 20cm: 75dB
  • Frequency: 400±100Hz
  • PCB terminal pitch: 7.6mm
  • Dimensions: 23 x 17 x 15mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Frequency 400Hz
    Input voltage 9-15VDC
    Mounting style PCB Mount
    Operating temperature -20°C to +60°C
    Pitch 7.6mm
    Rated current 25mA
    Rated voltage 12VDC
    Sound output 75dB @ 20cm
