12V Power Socket with Front Mounting Panel 20A
SKU 491231
MPN: SE60780-3
Availability:
96 in stock
Original price
£3.25
-
Original price
£3.25
Original price
£3.25
£3.25
£3.25
-
£3.25
Current price
£3.25

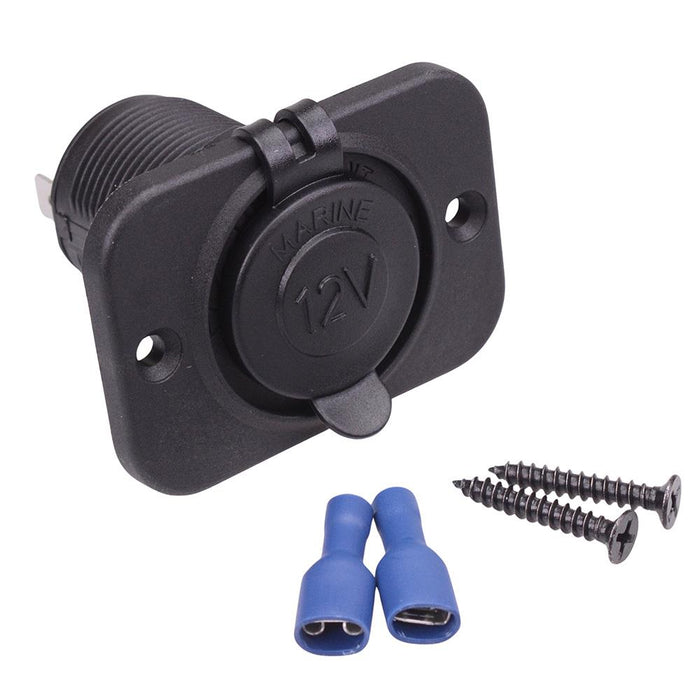

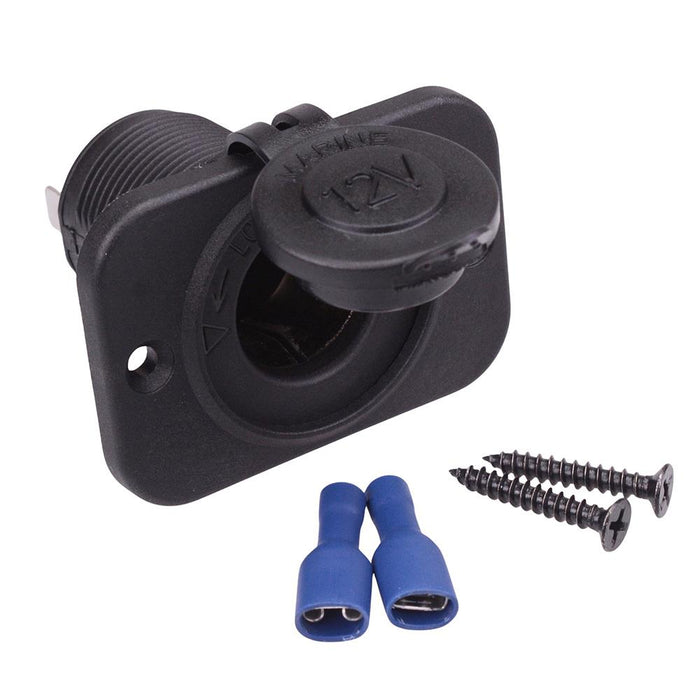

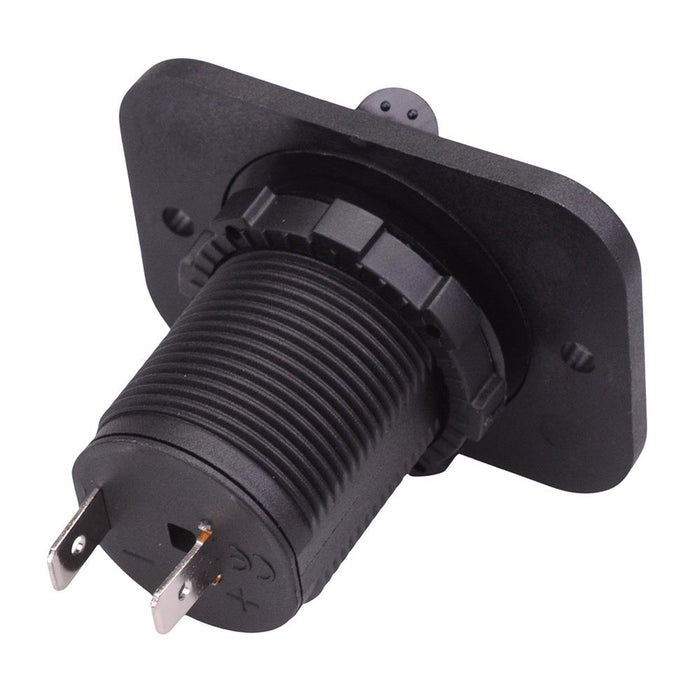

Automotive power socket supplied with mounting frame and installation accessories. The connector is suitable for both 12VDC / 24VDC applications and features a protective cover . The socket is suitable for mounting in front of the panel in automotive and marine applications.
Voltage rating: 20A 12VDC, 10A 24VDC 6.3mm quick connect terminals Supplied with mounting frame, screws, crimps Mounting hole pitch: 48mm Screw hole diameter: 4mm Dimensions: 56.0 x 60.6 x 43.0mm (depth x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Current Rating | 20A |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Panel Cut Out | 29mm |
| Termination Method | Quick Connect |
| Voltage Rating | 24VDC |
