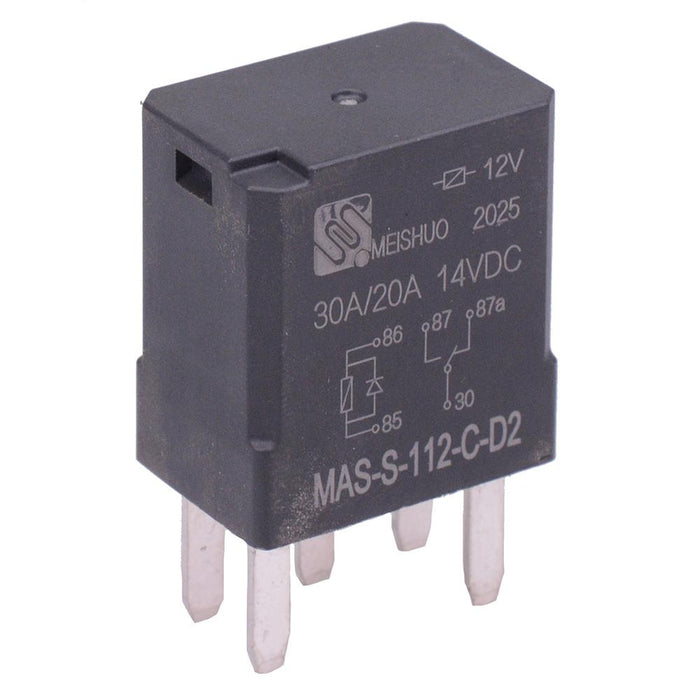

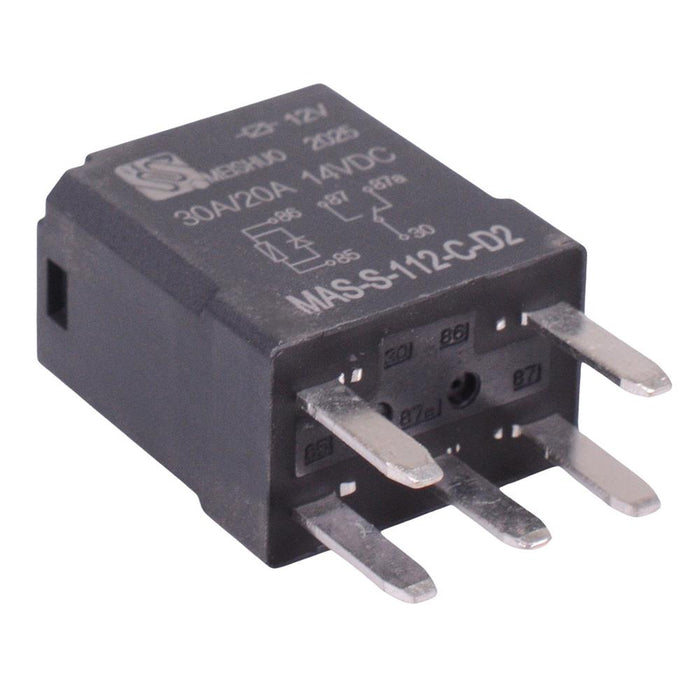

12V SPDT Micro Automotive Relay Diode MAS-S-112-C-D2
by Meishuo
SKU 490867
MPN: MAS-S-112-C-D2
Availability:
491 in stock
Original price
£2.30
-
Original price
£2.30
Original price
£2.30
£2.30
£2.30
-
£2.30
Current price
£2.30
Micro automotive relay featuring SPDT contacts and 12V coil voltage with a diode protecting against voltage spikes. The relay features a sealed construction and PCB terminals making it suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Maximum continuous current: 30A NO, 20A NC Maximum switching voltage: 28VDC Coil voltage: 12VDC Coil power: 1.5W Contacts: SPDT Terminals: PCB Body dimensions: 22.5 x 15 x 25mm (L x W x H)
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 109Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 30A |
| Maximum Switching Voltage | 28VDC |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.5W |
| Terminal Type | Quick Connect |
