12V SPDT Mini Automotive Relay 40A MAH3-S-112-C-3
by Meishuo
SKU 490874
MPN: MAH3-S-112-C-3
Availability:
500 in stock
Original price
£2.46
-
Original price
£2.46
Original price
£2.46
£2.46
£2.46
-
£2.46
Current price
£2.46

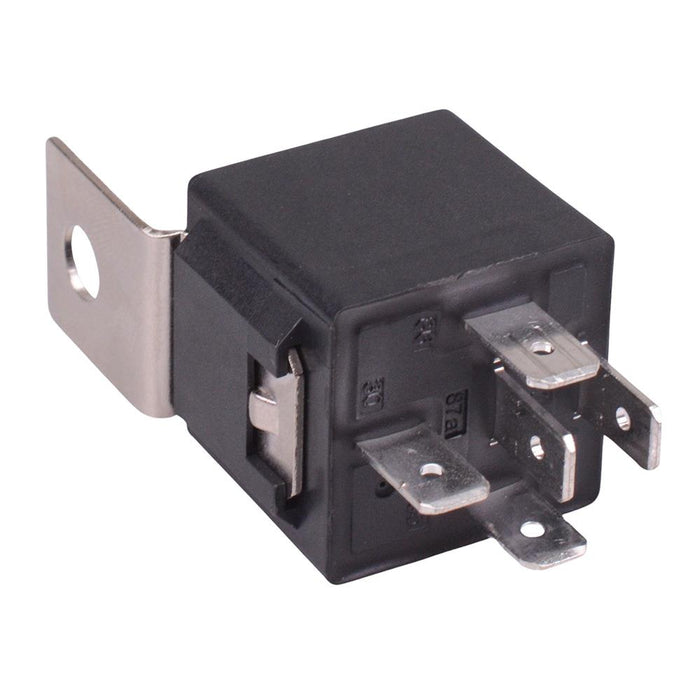

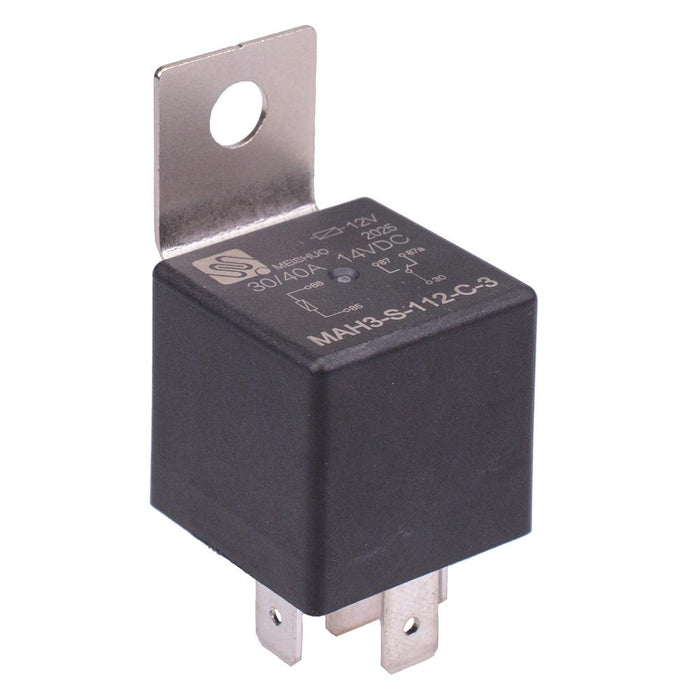

12V mini automotive relay featuring SPDT contacts and 40A current rating. The relay features a compact sealed design and metal mounting bracket. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Bracket: without Maximum continuous current: 40A Contact rating: 14VDC 40A/30A (NO/NC) Coil voltage: 12VDC Coil power: 1.7W Contacts: SPDT Terminals: 6.3mm quick connect Body dimensions: 25 x 26 x 26mm (height x width x depth)
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 85Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 60A |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.7W |
| Terminal Type | Quick Connect |
