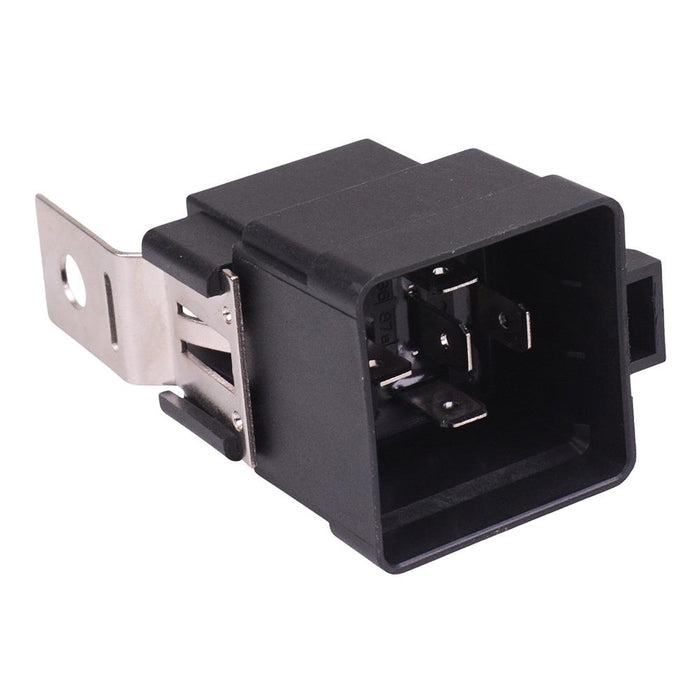

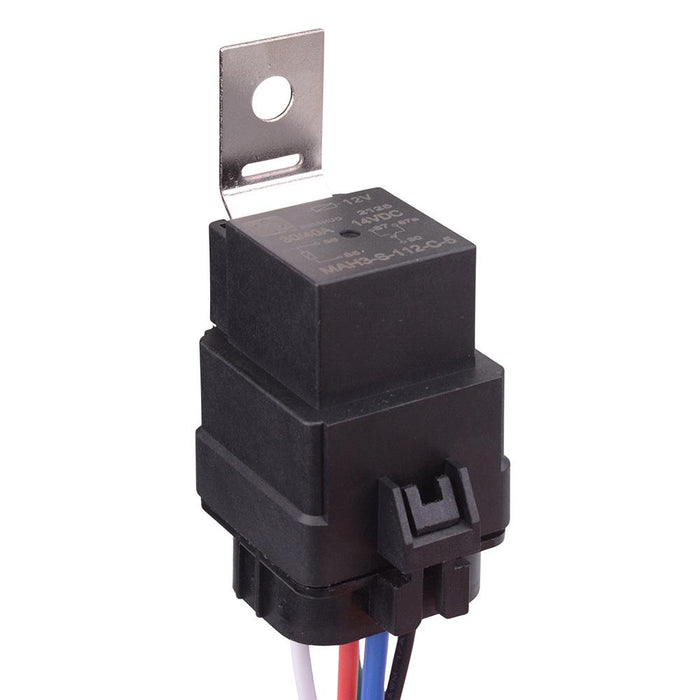

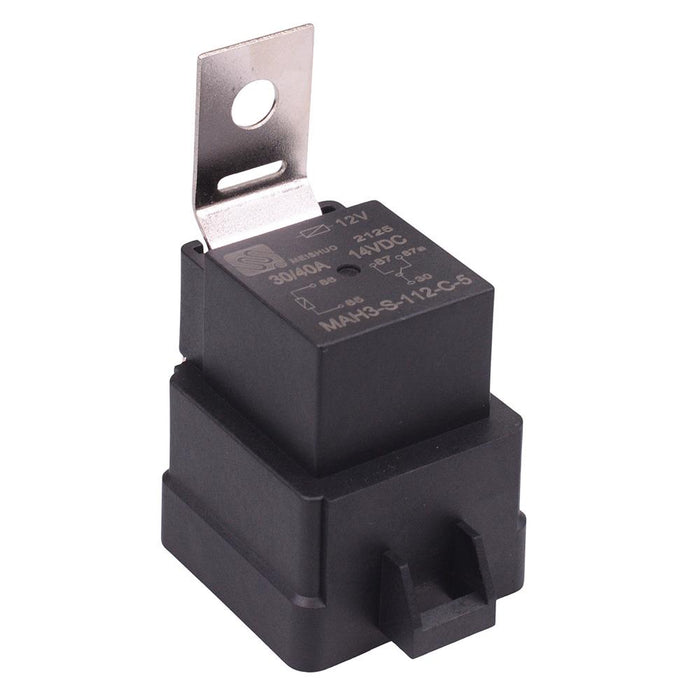

12V SPDT Mini Automotive Skirted Relay Metal Bracket 40A MAH3-S-112-C-5
by Meishuo
SKU 490875
MPN: MAH3-S-112-C-5
Availability:
294 in stock
Original price
£3.04
-
Original price
£3.04
Original price
£3.04
£3.19
£3.19
-
£3.19
Current price
£3.19
12V mini automotive relay featuring SPDT contacts and 40A current rating. The relay features a bracket and skirted design providing a waterproof seal with the socket. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Waterproof skirted design Excellent shock and vibration resistance Wide temperature range Bracket: metal Maximum continuous current: 40A Contact rating: 14VDC 40A/30A (NO/NC) Coil voltage: 12VDC Coil power: 2.4W Contacts: SPDT Terminals: 6.3mm quick connect Body dimensions: 43.2 x 35.1 x 35.1mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 60Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 40A |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 2.4W |
| Terminal Type | Quick Connect |
