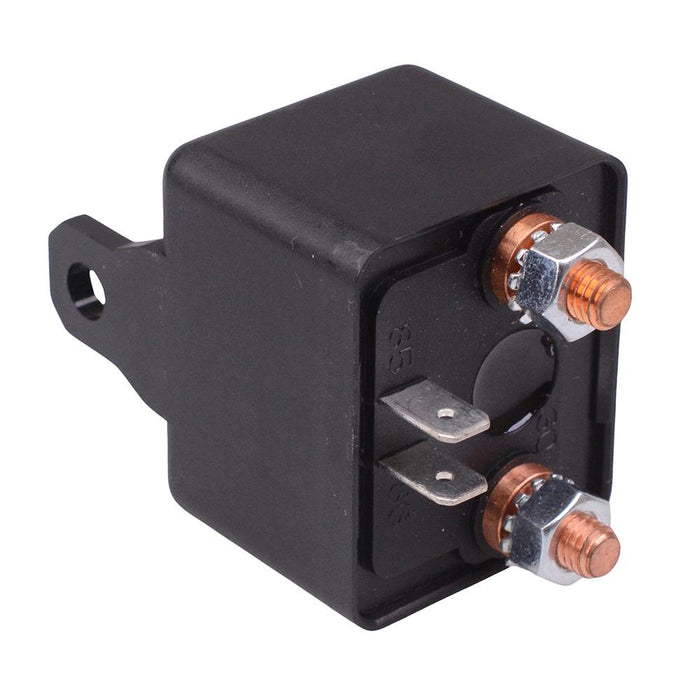

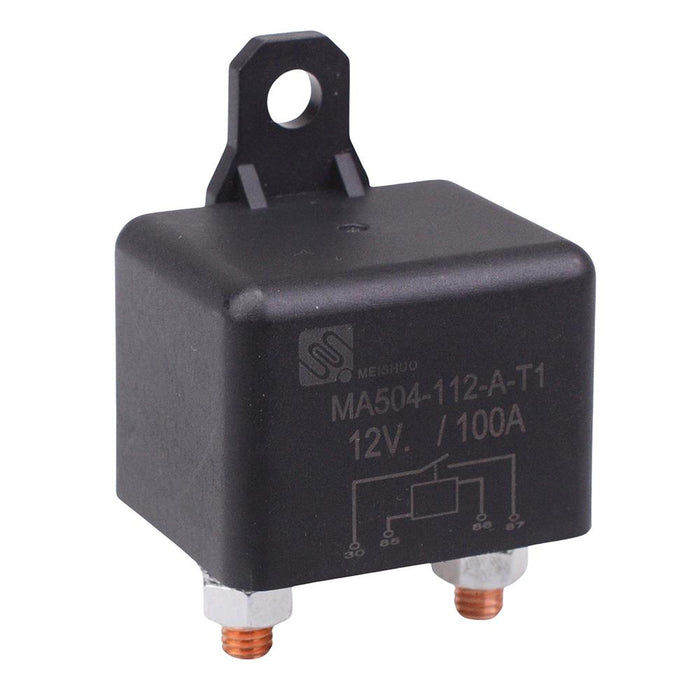

12V SPNO Heavy Duty Automotive Relay Bracket 100A MA504-112-A-T1

by Meishuo
SKU 490681

MPN: MA504-112-A-T1 100A

Availability:
Out of stock
Sold out
Original price £0.00 - Original price £0.00
Original price
£0.00
£0.00 - £0.00
Current price £0.00
12V heavy duty automotive relay featuring SPNO contacts and 100A switching capability. The relay features 6.3mm quick connect and copper stud terminals, suitable for a wide range of automotive and marine applications.

  • Wide temperature range
  • Switching current: 100A
  • Coil voltage: 12VDC
  • Coil power: 4.8W
  • Contacts: SPNO
  • Terminals: 6.3mm quick connect and copper stud
  • Body dimensions: 44.8 x 37 x 33mm (width x depth x height)
  • Specification
    Ambient Temperature -40°C to +75°C
    Back Order Lead Time 120 Days
    Coil Resistance 30Ω
    Coil Voltage 12VDC
    Contact Arrangement SPNO
    Maximum Switching Current 100A
    MOQ 1
    Mounting Type Bracket
    Number of Contacts 4
    Power Consumption 4.8W
    Terminal Type M6 Stud / Quick Connect
    Request a quote
