12V SPNO Mini Automotive PCB Relay 40A MAH-S-112-A-2
by Meishuo
SKU 490880
MPN: MAH-S-112-A-2
Availability:
500 in stock
Original price
£1.97
-
Original price
£1.97
Original price
£1.97
£2.07
£2.07
-
£2.07
Current price
£2.07

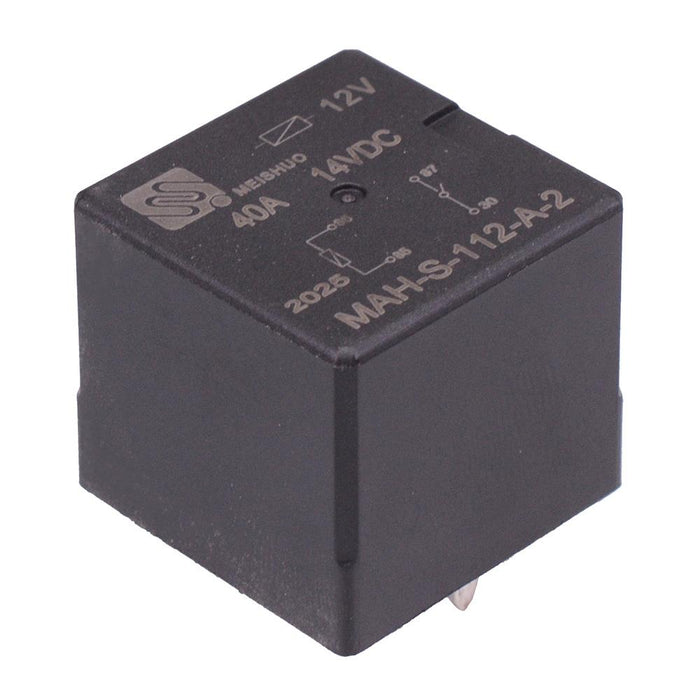

12V mini automotive relay featuring SPNO contacts and 40A continuous current rating. The relay features a sealed construction and PCB terminals, suitable for through hole mounting. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Bracket: without Maximum continuous current: 40A Contact rating: 14VDC 40A Coil voltage: 12VDC Coil power: 1.7W Contacts: SPNO Terminals: PCB Body dimensions: 27.8 x 27.8 x 25.1mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 680Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 40A |
| Maximum Switching Voltage | 80VDC |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 4 |
| Power Consumption | 1.9W |
| Terminal Type | Through Hole |
