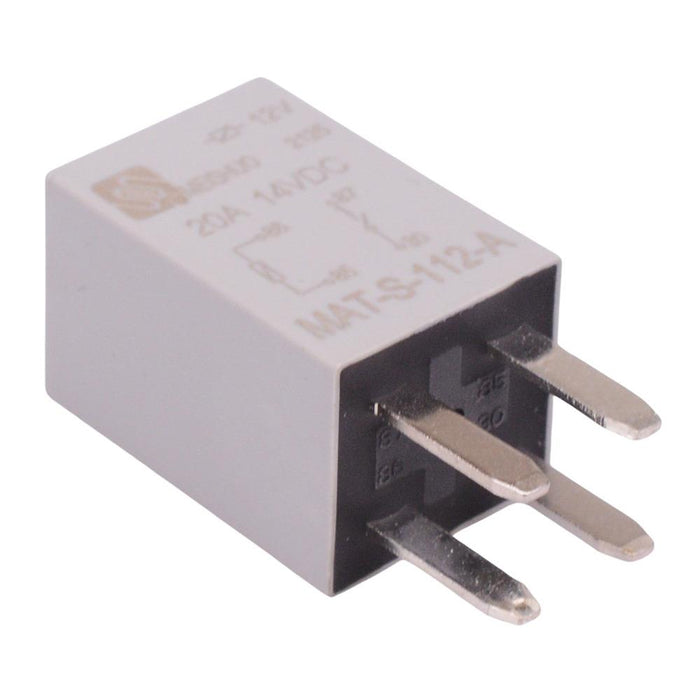

12V SPNO Ultra Micro Automotive Relay MAT-S-112-A
by Meishuo
SKU 490887
MPN: MAT-S-112-A
Availability:
495 in stock
Original price
£1.98
-
Original price
£1.98
Original price
£1.98
£2.08
£2.08
-
£2.08
Current price
£2.08
12V automotive relay with SPNO contacts and housed in a standard ultra micro package. The relay features 20A switching capability and is suitable for PCB mounting in tightly packaged automotive applications.
Coil voltage: 12VDC Switching capability: 20A Contacts: SPNO Terminals: 2.8 x 0.8mm Dimensions: 15 x 16 x 23.7mm (depth x width x height)
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 150Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Electrical Life | 100,000 Cycles |
| Maximum Switching Current | 20A |
| Maximum Switching Voltage | 30VDC |
| Mechanical Life | 10,000,000 Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 4 |
| Power Consumption | 1.1W |
| Terminal Type | Quick Connect |
