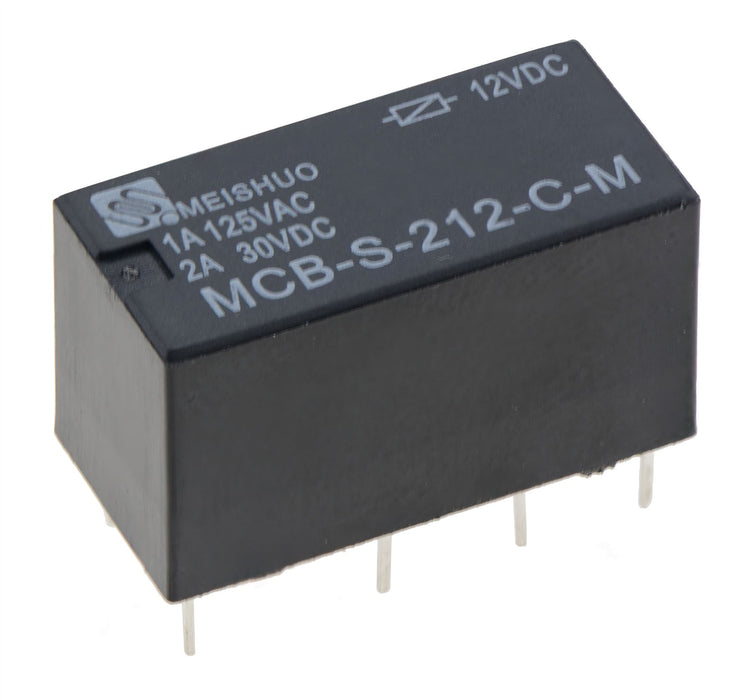

12V DPDT Subminiature Changeover PCB Relay 2A MCB-S-212-C-M

12V DPDT Subminiature Changeover PCB Relay 2A MCB-S-212-C-M

by Meishuo
SKU 309010

MPN: MCB-S-212-C-M

Availability:
420 in stock
£0.98 - £0.98
£0.98
£0.98 - £0.98
£0.98
12V subminiature PCB relay featuring DPDT contacts and compact low profile package, suitable for through hole or IC socket mounting with high density PCBs.

  • Contacts: DPDT
  • Coil voltage: 12VDC
  • Sealed construction
  • Contact rating: 2A 30VDC, 1A 125VAC
  • Coil power: 280-580mW
  • Fits 16-pin IC sockets
  • Dimensions: 20.2 x 10 x 11.5mm
    • Download Product Data Sheet PDF
    Specification
    Ambient Temperature -40°C to +85°C
    Back Order Lead Time 120 Days
    Coil Resistance 450Ω
    Coil Voltage 12VDC
    Contact Arrangement DPDT
    Maximum Switching Current 2A
    Maximum Switching Voltage 125VAC / 30VDC
    Mounting Type PCB
    Number of Contacts 8
    Power Consumption 280-580mW
    Terminal Type Through Hole
    Request a quote

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    Paul Taylor
    Quick delivery and work as described

    Nice quick delivery, only even better if would be that the data sheets are a bit difficult to understand unless you are very technical. Would be worth writing out long hand double pole double throw in the description to aid finding the rest ght one quicker
