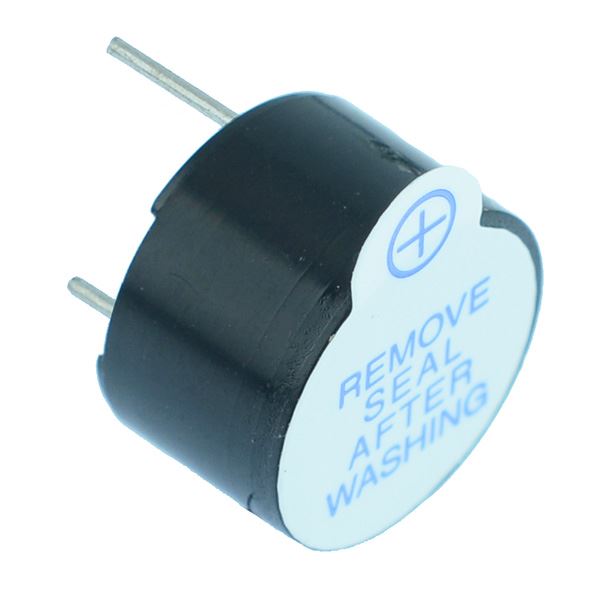

12V Subminiature Low Profile Electromagnetic PCB Buzzer
SKU 481815
MPN: 481815
Availability:
1201 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.59
£0.59
-
£0.59
Current price
£0.59
12V electromagnetic buzzer housed in a subminiature low profile package with PCB terminals. The buzzer features a sealed construction making them ideal for manufacturing applications.
Rated voltage: 12VDC Operating voltage: 8-15VDC Maximum current rating: 30mA Sound output: 85db@10cm Housing material: PBT Pin pitch: 7.6mm Dimensions: 12 x 7.5mm (Diameter x Height)
Specification
| Back Order Lead Time | 150 |
| Diameter | 12mm |
| Height | 7.5mm |
| Input Voltage | 8-15VDC |
| MOQ | 1 |
| Mounting Style | PCB Mount |
| Pitch | 7.6mm |
| Rated Current | 30mA |
| Rated Voltage | 12VDC |
| Sound Output | 85dB @ 10cm |
