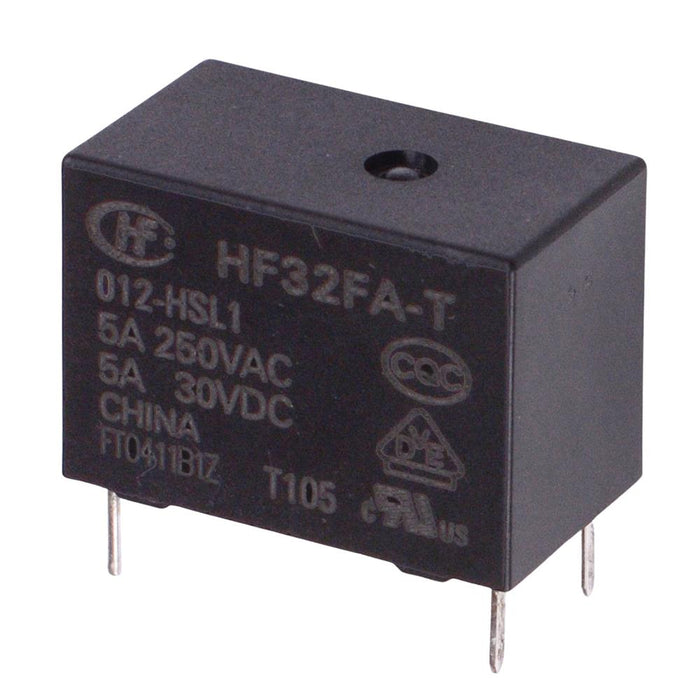

12V Subminiature PCB Power Relay 5A SPNO HF32FA/012-HSL1

by HongFa
SKU 550021

MPN: HF32FA-012-HSL1

Availability:
250 in stock
Original price £0.82 - Original price £0.82
Original price
£0.82
£0.82 - £0.82
Current price £0.82
12V subminiature power relay manufactured by HongFa, featuring SPNO contacts and 5A switching capacity. The relay features a compact sealed construction and is suitable for through hole PCB applications.

  • Coil Voltage: 12VDC
  • Contact rating: 5A 250VAC / 30VDC
  • Coil power: 200mW
  • Sealed construction
  • Maximum switching current: 5A
  • Maximum switching voltage: 250VAC, 30VDC
  • 17.6 x 10.1 x 12.3mm
  • Specification
    Ambient Temperature -40°C to +85°C
    Back Order Lead Time 30 Days
    Coil Resistance 720Ω
    Coil Voltage 12VDC
    Contact Arrangement SPNO
    Maximum Continuous Voltage 20.4VDC
    Maximum Switching Current 5A
    Maximum Switching Voltage 250VAC / 30VDC
    Mounting Type PCB
    Number of Contacts 4
    Power Consumption 0.2W
    Terminal Type Through Hole
