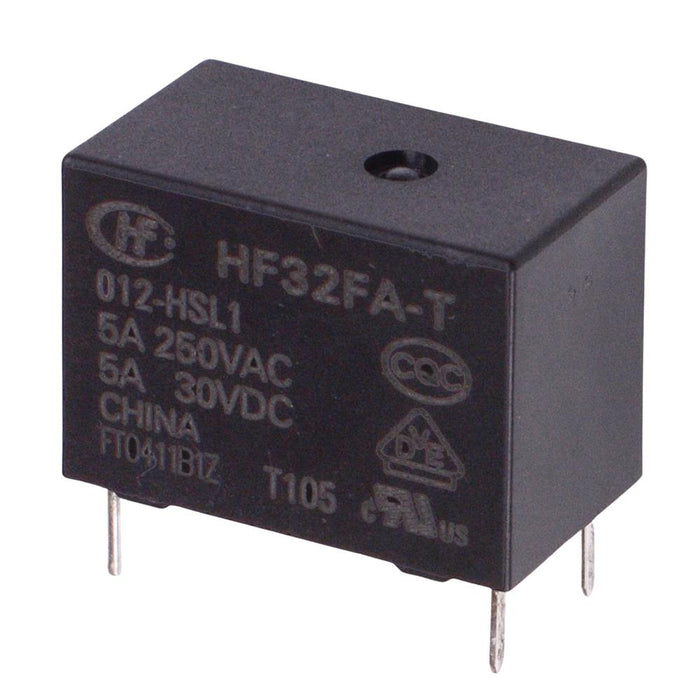

12V Subminiature PCB Power Relay 5A SPNO HF32FA/012-HSL1
by HongFa
SKU 550021
MPN: HF32FA-012-HSL1
Availability:
19 in stock
Original price
£0.93
-
Original price
£0.93
Original price
£0.93
£1.05
£1.05
-
£1.05
Current price
£1.05
12V subminiature power relay manufactured by HongFa, featuring SPNO contacts and 5A switching capacity. The relay features a compact sealed construction and is suitable for through hole PCB applications.
Coil Voltage: 12VDC Contact rating: 5A 250VAC / 30VDC Coil power: 200mW Sealed construction Maximum switching current: 5A Maximum switching voltage: 250VAC, 30VDC 17.6 x 10.1 x 12.3mm
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 30 Days |
| Coil Resistance | 720Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Continuous Voltage | 20.4VDC |
| Maximum Switching Current | 5A |
| Maximum Switching Voltage | 250VAC / 30VDC |
| Mounting Type | PCB |
| Number of Contacts | 4 |
| Power Consumption | 0.2W |
| Terminal Type | Through Hole |
