12V Subminiature PCB Relay DPDT 2A

by AFE
SKU 481876


Out of stock
Sold out
Original price £1.22 - Original price £1.22
Original price
£1.22 Inc VAT
£1.22 - £1.22
Current price £1.22 Inc VAT

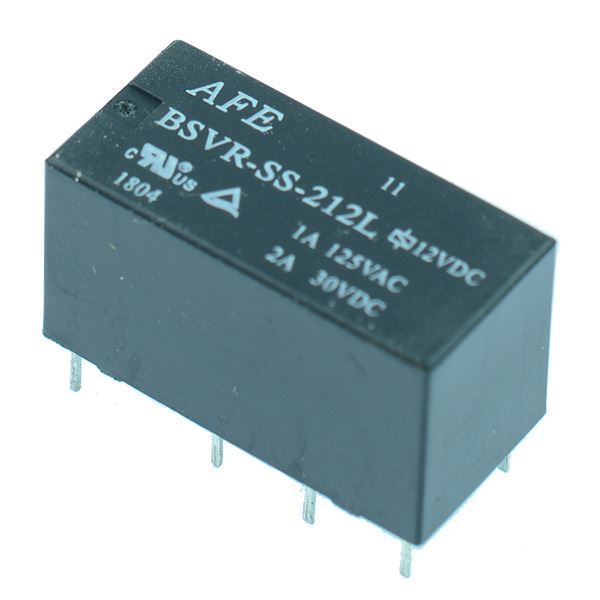

12V subminiature relay housed in a sealed compact package suitable for mounting to PCBs. The relay features DPDT contact configuration and 2A maximum current rating, making it suitable for a wide range of applications including household appliances.

  • Coil voltage: 12V
  • Contact configuration: DPDT
  • Contact capacity: 1A 125VAC, 2A 30VDC
  • Maximum current: 2A
  • Maximum voltage: 125VAC, 30VDC
  • Dimensions: 20.1 x 10 x 12mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Coil resistance 720Ω
    Coil voltage 12VDC
    Contact arrangement DPDT
    Maximum continuous voltage 15.6VDC
    Maximum switching current 2A
    Maximum switching voltage 125VAC / 30VDC
    Mounting type PCB
    Number of contacts 8
    Power consumption 0.2W
    Terminal type Through Hole
