PS5R-VB12 12VDC 1.3A 15W DIN Rail Power Supply IDEC
by IDEC
SKU 485719
MPN: PS5R-VB12
Availability:
Only 5 left!
Original price
£27.65
-
Original price
£27.65
Original price
£27.65
£27.65
£27.65
-
£27.65
Current price
£27.65

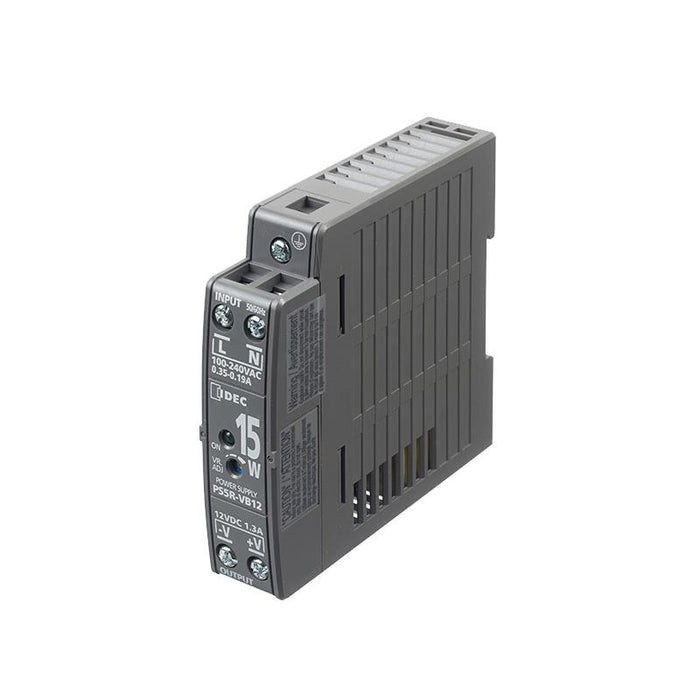

The PS5R-VB12 is a 12V 15W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.
Output voltage: 12VDC Output current: 1.3A Output capacity: 15W Input voltage: 85-264VAC / 100-370VDC Spring-up terminals accept ring & fork terminals Approved for use in Class I Division 2 hazardous locations Can be installed in 6 directions Overcurrent protection with auto-reset Five-year factory warranty Dimensions: 95 x 90 x 22.5mm (Depth x Height x Width)
Specification
| Back Order Lead Time | 120 |
| Input Voltage | 85-264VAC / 100-370VDC |
| MOQ | 1 |
| Output Connector | Terminal Block |
| Output Current | 1.3A |
| Output Voltage | 12VDC |
| Over Current Protection | Yes |
| Power Rating | 15W |
