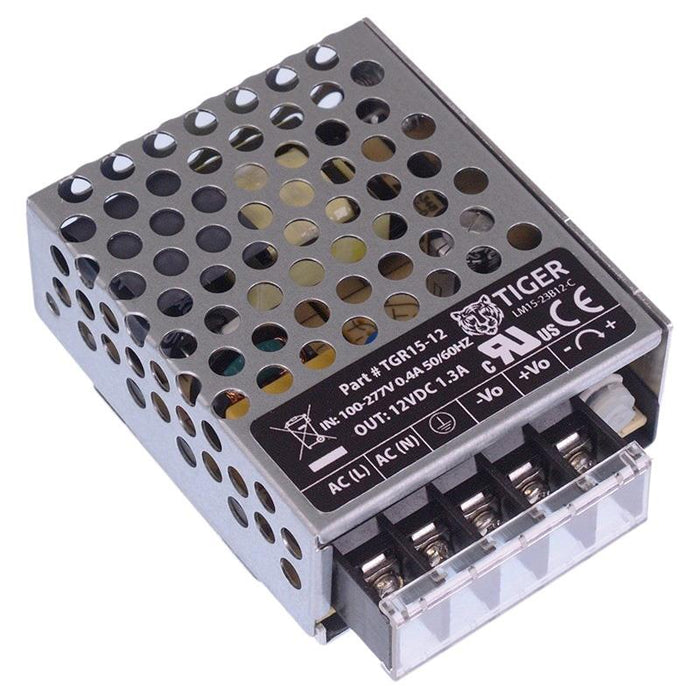

12VDC 1.3A 15W Industrial Enclosed Power Supply
SKU 484409
MPN: 484409
Availability:
Out of stock
Sold out
Original price
£11.40
-
Original price
£11.40
Original price
£11.40
Inc VAT
£11.40
-
£11.40
Current price
£11.40
Inc VAT
15W 12VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 15W Nominal output: 12VDC / 1.3A Output voltage adjustable range: 10.2-13.8VDC AC Input voltage: 85-305VAC DC Input voltage: 100-430VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage protection IEC/EN/UL62368, GB4943 safety approval Dimensions: 65 x 55 x 25mm (Length x Width x Height)
Specification
| Ambient temperature | -30°C to 70°C |
| Back order lead time | 5 Days |
| Input frequency | 47-63Hz |
| Input voltage | 85-305VAC / 100-430VDC |
| Output connector | Terminal Block |
| Output current | 1.3A |
| Output voltage | 12VDC |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Power rating | 15W |
| Short circuit protection | Yes |
