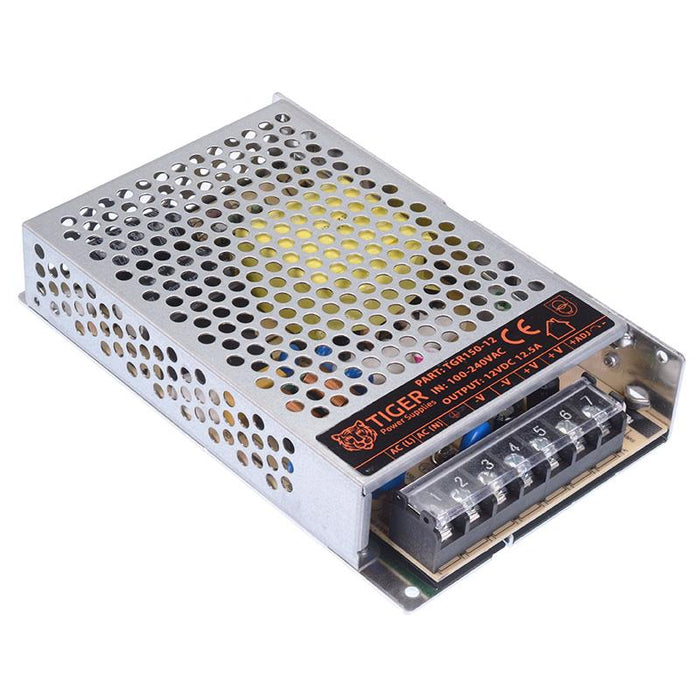

12VDC 12.5A 150W Industrial Enclosed Power Supply
SKU 484311
MPN: 484311
Availability:
Out of stock
Sold out
Original price
£29.48
-
Original price
£29.48
Original price
£29.48
£29.48
-
£29.48
Current price
£29.48
150W 12VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 150W Nominal output: 12VDC / 12.5A Output voltage adjustable range: 10.2-13.8VDC AC Input voltage: 85-264VAC DC Input voltage: 120-373VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage, over-temperature protection Safety according to IEC/EN/UL62368, EN60335, GB4943, EN61558 Dimensions: 152.45 x 97 x 30mm
Specification
Back Order Lead Time | 5 Days |
Input Frequency | 47-63Hz |
Input Voltage | 85-264VAC / 120-373VDC |
Maximum Temperature | 70°C |
Output Connector | Terminal Block |
Output Current | 12.5A |
Output Voltage | 12VDC |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 150W |
Short Circuit Protection | Yes |
