12VDC 20W Slim DIN Rail Power Supply

SKU 490357

MPN: YSD20L-12

Availability:
50 in stock
Original price £13.74 - Original price £13.74
Original price
£13.74
£13.74 - £13.74
Current price £13.74

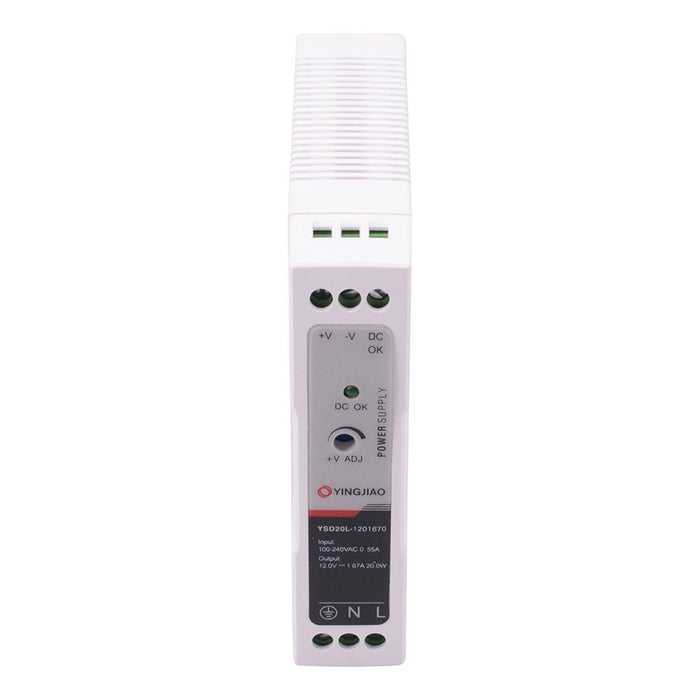

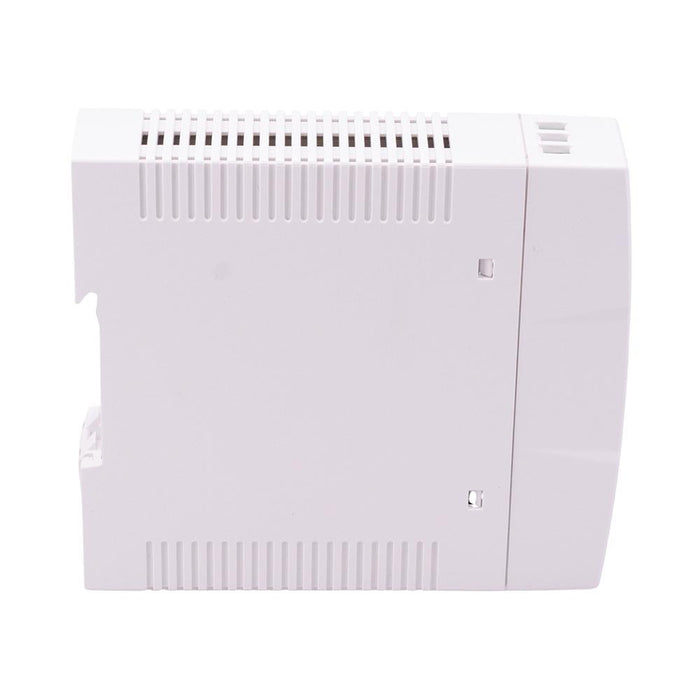

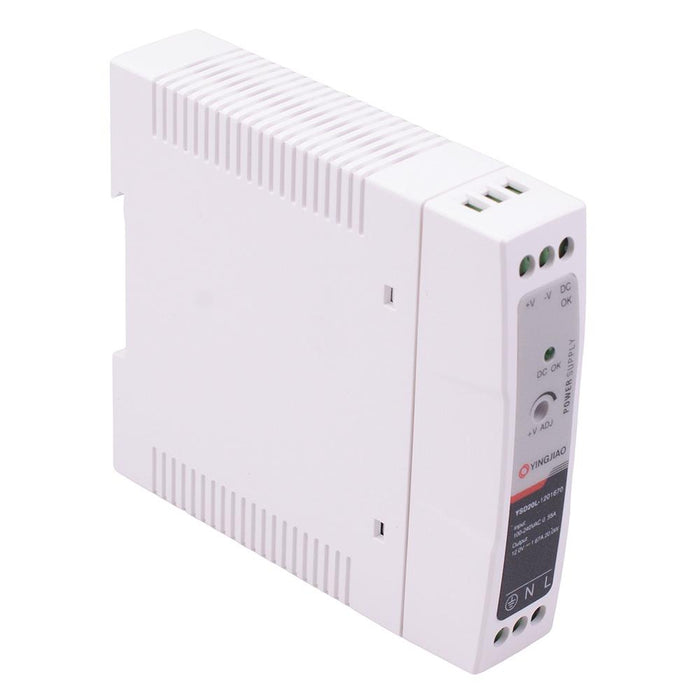

20W DIN rail power supply featuring a slim plastic housing and 12VDC 1.67A output. The power supply features an adjustable DC output voltage and DC OK signal output. The power supply comes with short-circuit, over-voltage and overload protection. Widely used for industrial automation, control systems, various other equipment and machines.

  • Input voltage: 90-264VAC, 127-370VDC
  • Output voltage: 12VDC
  • Adjustable range: 12-14VDC
  • Output current: 1.67A
  • Power: 20W
  • Dimensions: 92 x 23 x 100mm (height x width x depth)
  • Complies with CE, UKCA, UL508
  • 3 year warranty
  • Specification
    Back Order Lead Time 120 Days
    Input Frequency 47-63Hz
    Input Voltage 90-264VAC, 127-370VDC
    Maximum Temperature 70°C
    MOQ 1
    Output Current 1.67A
    Output Voltage 12VDC
    Over Current Protection Yes
    Over Voltage Protection Yes
    Power Rating 20W
    Short Circuit Protection Yes
