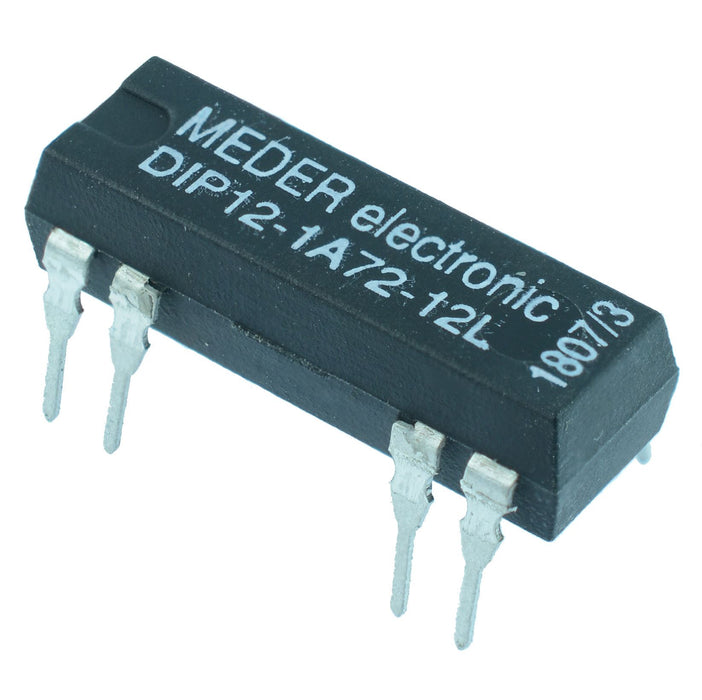

12VDC Normally Open Reed Relay SPST DIP12-1A72-12L

by Meder
SKU 481073

MPN: DIP12-1A72-12L

10 in stock
Original price £4.36 - Original price £4.36
Original price
£4.36 Inc VAT
£4.36 - £4.36
Current price £4.36 Inc VAT
The DIP12-1A72-12L is a general purpose 12V dual in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with DIP relays.

  • Features magnetic shield
  • 12 Pin Out
  • Coil voltage: 12VDC
  • Pull-in voltage: 8.4VDC Max
  • Drop-out voltage: 1.8VDC Min
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VAC
  • Maximum switching current: 0.5A
  • Maximum carry current: 1A
  • Maximum release time: 0.1ms
  • Specification
    Ambient temperature -35°C to +95°C
    Back order lead time 5 Days
    Coil resistance 1000Ω
    Coil voltage 12VDC
    Contact arrangement SPST-NO
    Maximum continuous voltage 16VDC
    Maximum switching current 0.5A
    Maximum switching voltage 200VAC
    Mounting type PCB
    Number of contacts 8
    Terminal type Through Hole
