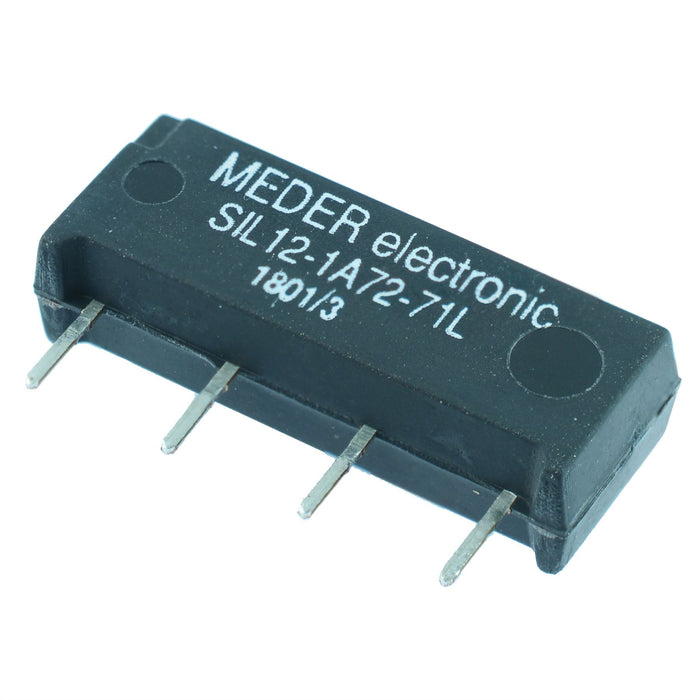

12VDC Normally Open Reed Relay SPST SIL12-1A72-71L
by Meder
SKU 481076
MPN: SIL12-1A72-71L
Availability:
13 in stock
Original price
£3.22
-
Original price
£3.22
Original price
£3.22
£3.22
-
£3.22
Current price
£3.22
The SIL12-1A72-71L is a general purpose 12V single in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with SIL sockets.
Coil voltage: 12VDC Pull-in voltage: 8.4VDC Max Drop-out voltage: 1.8VDC Min Maximum switching power: 10W Maximum switching voltage: 200VAC Maximum switching current: 0.5A Maximum carry current: 1A Maximum release time: 0.7ms Dimensions: 19.2 x 5.08 x 7.62mm
Specification
| Ambient Temperature | -20°C to +85°C |
| Back Order Lead Time | 5 Days |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPST-NO |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 200VAC |
| Mounting Type | PCB |
| Number of Contacts | 4 |
| Terminal Type | Through Hole |
