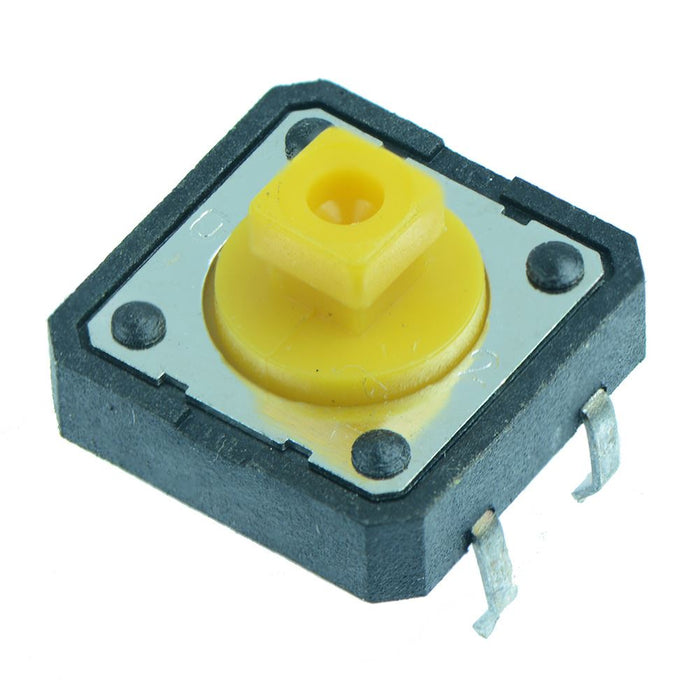

12x12mm Square Actuator Momentary PCB Tactile Switch 7.3mm Height

SKU 122034

MPN: 122034

Availability:
89110 in stock
Original price £0.21 - Original price £0.21
Original price
£0.21 Inc VAT
£0.21 - £0.21
Current price £0.21 Inc VAT
Tactile switches in standard 12 x 12mm size suitable for PCB mounting.

  • 7.3mm height
  • Square actuator can be used with caps
  • SPST normally open contacts
  • Positive click action
  • 4 terminal mounting
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Contact configuration SPST
    Contact rating 50mA 12VDC
    Current rating 50mA
    Electrical life 100,000 Cycles
    Height 7.3mm
    Moq 10
    Mounting style PCB
    Number of positions 2
    Operating force 180gf
    Operating temperature -20°C to +70°C
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 12VDC
