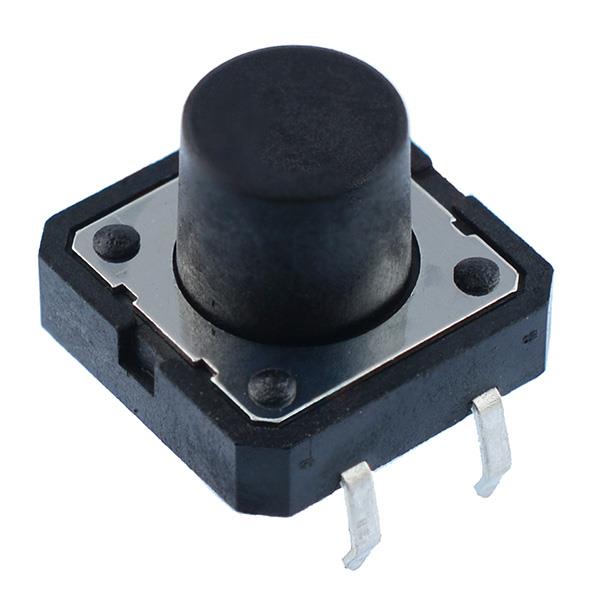

12x12x9.5mm Momentary PCB Tactile Switch
SKU 122004
MPN: 122004
Availability:
1818 in stock
Original price
£0.23
-
Original price
£0.23
Original price
£0.23
£0.23
£0.23
-
£0.23
Current price
£0.23
Low cost tactile switches in standard 12 x 12mm size suitable for PCB mounting.
9.5mm height SPST normally open contacts Positive click action 4 terminal mounting
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 100,000 Cycles |
| Height | 9.5mm |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -20°C to +70°C |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
