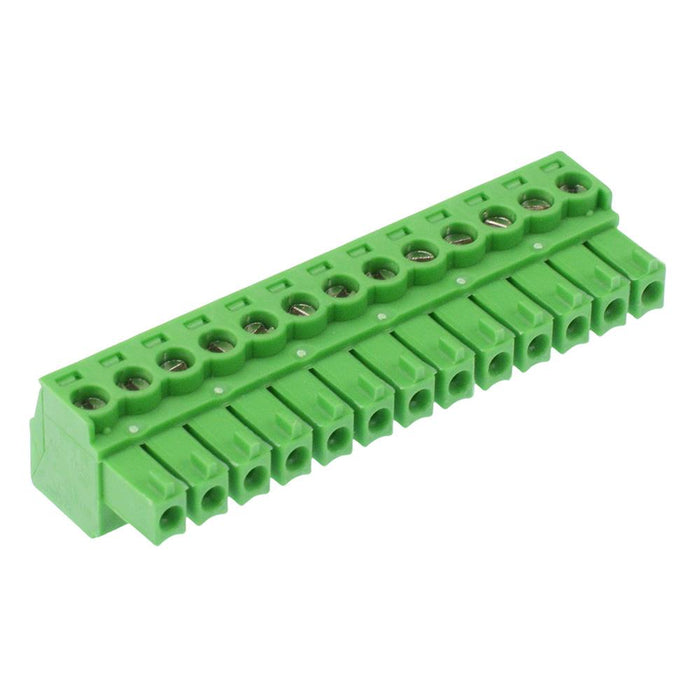

13-Way 3.81mm Right Angle Pluggable Terminal Block 8A 300V

SKU 488128

MPN: AKZ1550/13-3,81-GREEN

Availability:
50 in stock
Original price £1.64 - Original price £1.64
Original price
£1.64
£1.64 - £1.64
Current price £1.64
13 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.

  • 13 pole
  • 3.81mm pitch
  • Right angle
  • Material: PA66
  • Rating: 8A 300V
  • Wire size: 28-16AWG
  • Specification
    Back Order Lead Time 10 Days
    Colour Green
    Contact Material Brass
    Current Rating 8A
    Housing Material PA66
    Mounting Type Cable Mount
    Number of Ways 13
    Operating Temperature -40°C to +105°C
    Pitch 3.81mm
    Termination Method Screw
    Voltage Rating 300VAC
    Wire Range 28-16AWG
