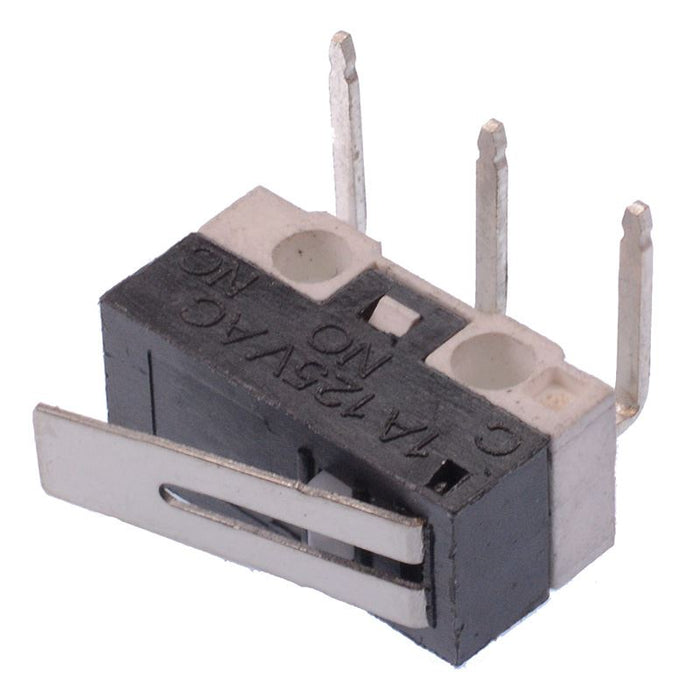

13mm Lever Subminiature Horizontal PCB Microswitch SPDT 3A
SKU 483513
MPN: 483513
Availability:
874 in stock
Original price
£0.43
-
Original price
£0.43
Original price
£0.43
£0.43
£0.43
-
£0.43
Current price
£0.43
Subminiature microswitch featuring a 13mm lever actuator housed in a compact package capable of switching up to 3A. The switch features left hand PCB terminals and is suitable for a wide range of applications.
13mm lever actuator Rating: 3A 250VAC NO / NC contacts Left hand PCB terminals Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 100gf |
| Operating Temperature | -25°C to +85°C |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
