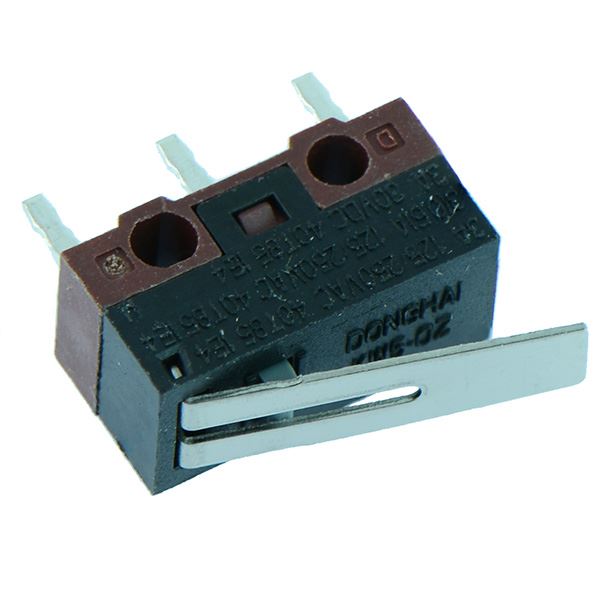

13mm Lever Subminiature PCB Microswitch SPDT 3A

SKU 481693

MPN: 481693

Availability:
1608 in stock
Original price £0.40 - Original price £0.40
Original price
£0.40 Inc VAT
£0.40 - £0.40
Current price £0.40 Inc VAT
Subminiature microswitch featuring a 13mm lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.

  • 13mm lever actuator
  • Rating: 3A 250VAC
  • NO / NC contacts
  • Solder PCB terminals
  • Operating force: 30gf
  • Release force: 10gf min
  • Pre-travel: 2.8mm max
  • Over-travel 0.7mm min
  • Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Number of positions 2
    Operating force 30g Max
    Pitch 5.1mm
    Release force 10gf Min
    Terminal type Through Hole
    Voltage rating 250VAC
