14-Way 3.81mm Right Angle Pluggable Terminal Block 8A 300V

SKU 488093

MPN: AKZ1550/14-3,81-GREEN

Availability:
44 in stock
Original price £1.76 - Original price £1.76
Original price
£1.76
£1.76 - £1.76
Current price £1.76

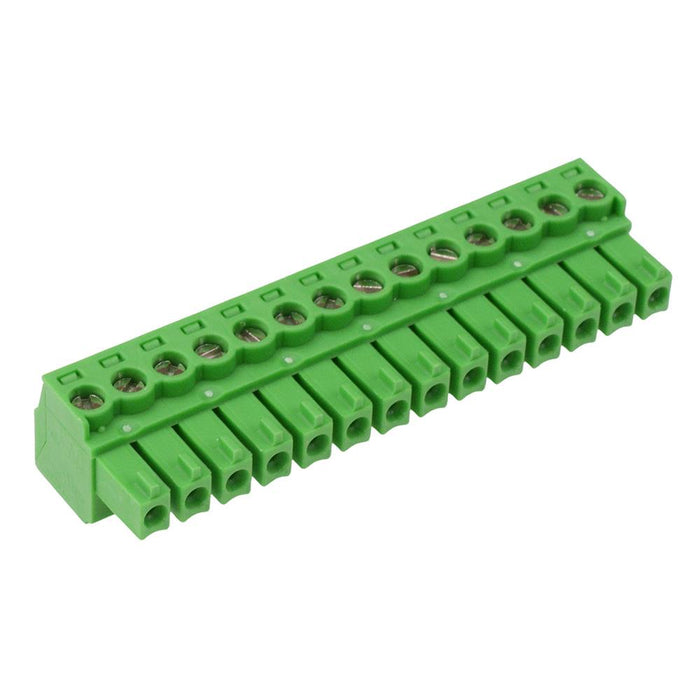

14 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.

  • 14 pole
  • 3.81mm pitch
  • Right angle
  • Material: PA66
  • Rating: 8A 300V
  • Wire size: 28-16AWG
  • Specification
    Back Order Lead Time 10 Days
    Colour Green
    Contact Material Brass
    Current Rating 8A
    Housing Material PA66
    Mounting Type Cable Mount
    Number of Ways 14
    Operating Temperature -40°C to +105°C
    Pitch 3.81mm
    Termination Method Screw
    Voltage Rating 300VAC
    Wire Range 28-16AWG
