1415NC7 Ivory Momentary Changeover Push Button Switch SPDT 3A
by APEM
SKU 489770
MPN: 1415NC7
Availability:
Only 4 left!
Original price
£4.32
-
Original price
£4.32
Original price
£4.32
£4.32
£4.32
-
£4.32
Current price
£4.32

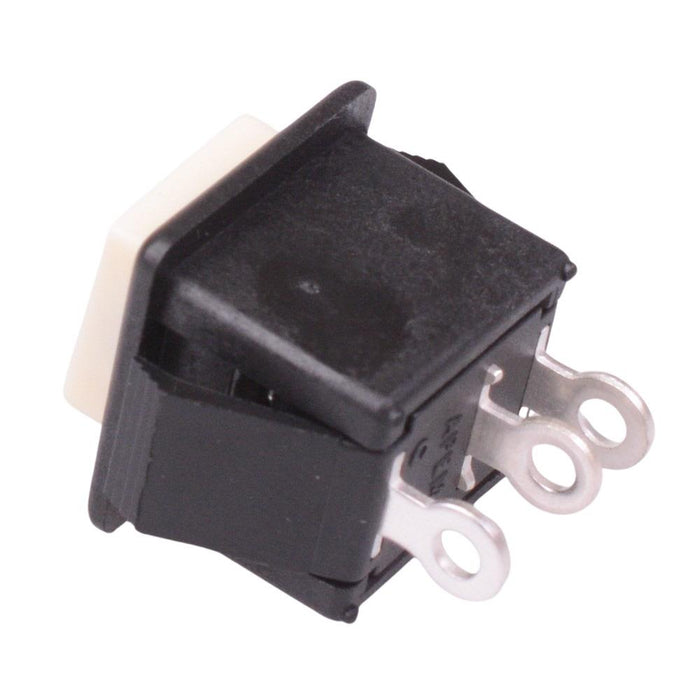

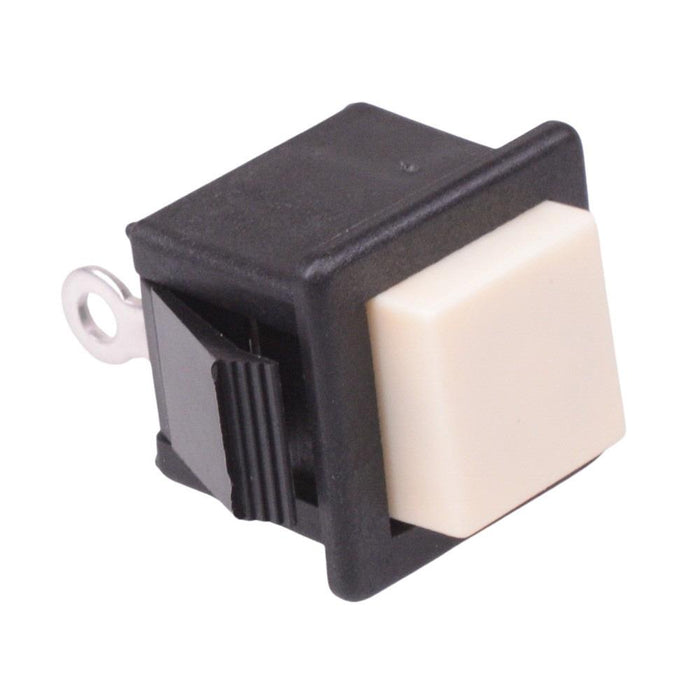

The 1415NC7 is a ivory momentary push button switch with snap-in mounting and changeover contacts. The switch features a square plunger and solder terminals making it suitable for panel mounting applications.
SPDT changeover contacts Solder terminals Square plunger Rating: 3A 12VDC Panel cut-out: 14.3 x 16.5mm Panel thickness: 2mm max
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Colour | Ivory |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 12VDC |
| Current Rating | 3A |
| Electrical Life | 10,000,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 16.5 x 14.3mm |
| Panel Thickness | 2mm |
| Product Series | 1400N |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
