1430PCFB5220VNKV Russenberger On-Off Green illuminated Push Button Switch 230VAC DPST
SKU 487512
MPN: 1430PCFB5220VNKV
Back Order Availability: 10 Days
Availability:
108 in stock, ready to be shipped
Original price
£3.89
-
Original price
£3.89
Original price
£3.89
Inc VAT
£3.89
-
£3.89
Current price
£3.89
Inc VAT

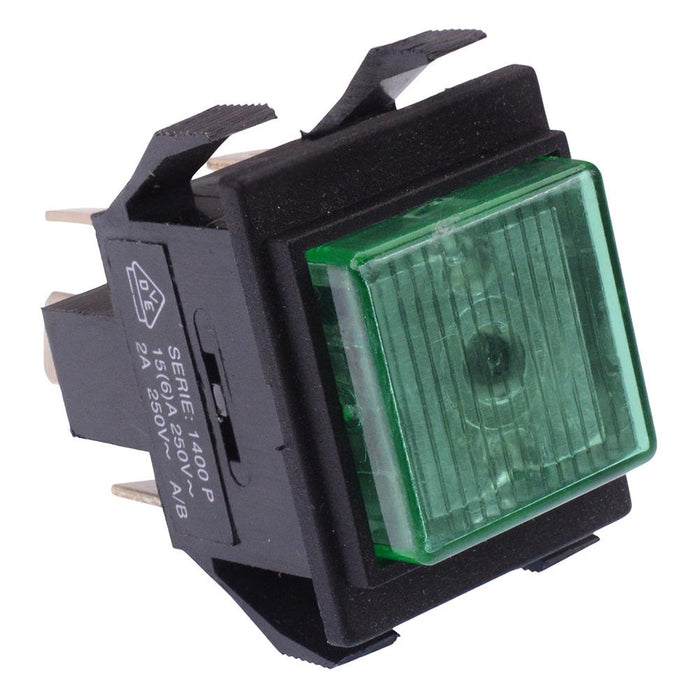

The 1430PCFB5220VNKV is a green illuminated push button switch featuring a latching mechanism and quick connect terminals. The switch features 230VAC illumination and 15A current rating, suitable for a wide range of applications.
On-Off function DPST contacts 6.35mm quick connect terminals Rating: 15A 250VAC Green 230VAC illumination Panel cut-out: 23 x 22mm
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPST |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 230VAC |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Panel cut out | 23 x 22mm |
| Product series | 1400P |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
