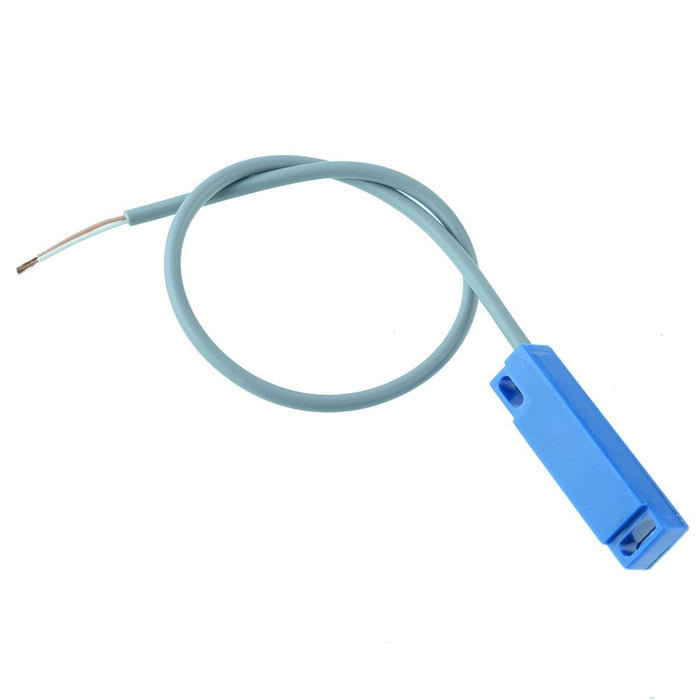

15° ABS Tilt Switch 250mA 60V - S1393

The S1393 is a tilt switch module featuring non-mercury contacts that operate when tilted from the horizontal position. he switch movement required to cause contact change (example off to on) is called the differential angle. It is very important when designing a tilt switch to allow for the differential angle and understand that when in the horizontal position the switch contact may be open or closed.

ABS case

Maximum switching voltage: 60V AC/DC

Maximum switching current: 0.25A

Maximum switching capacity: 3VA

Differential angle: 15°

2 x 0.14mm² PVC insulated wire
