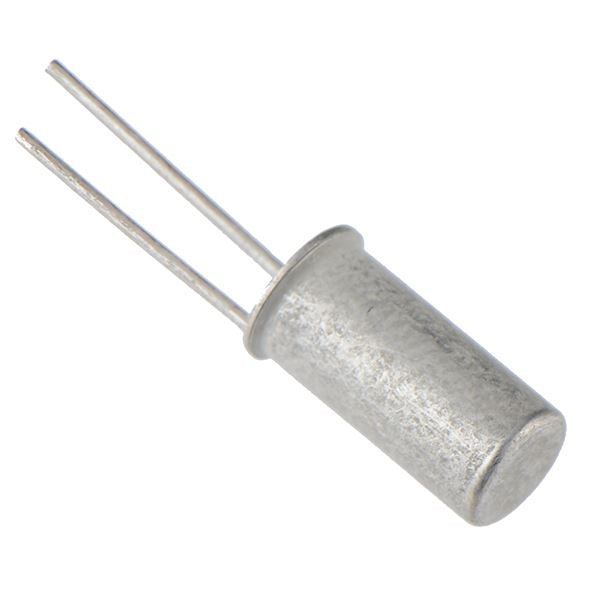

15° Tilt Switch 250mA 60V - CW1300-1

by Comus
SKU 552528

MPN: CW1300-1

87 in stock
Original price £2.33 - Original price £2.33
Original price
£2.33 Inc VAT
£2.33 - £2.33
Current price £2.33 Inc VAT
CW1300-1 tilt sensor hermetically sealed in a gas-filled package. The switch operates when tilted from the horizontal position. The switch movement required to cause contact change is 15°, this is called the differential angle.

  • Resistant to ambient environmental conditions
  • Tin plated case
  • Maximum switching voltage: 60VAC
  • Maximum switching current: 250mA
  • Maximum switching capacity: 3VA
  • Make angle: 10° below horizontal
  • Break angle: 10° above horizontal
  • Dimensions: 22.1 x 4.7mm (Length x Diameter)
  • Specification
    Back order lead time 180 Days
    Break angle 10° Above Horizontal
    Differential angle 15°
    Make angle 10° Below Horizontal
    Material Tin Plated
    Maximum switching capacity 3VA
    Maximum switching current 0.25A
    Maximum switching voltage 60VAC
    Operating temperature -37°C to +100°C
