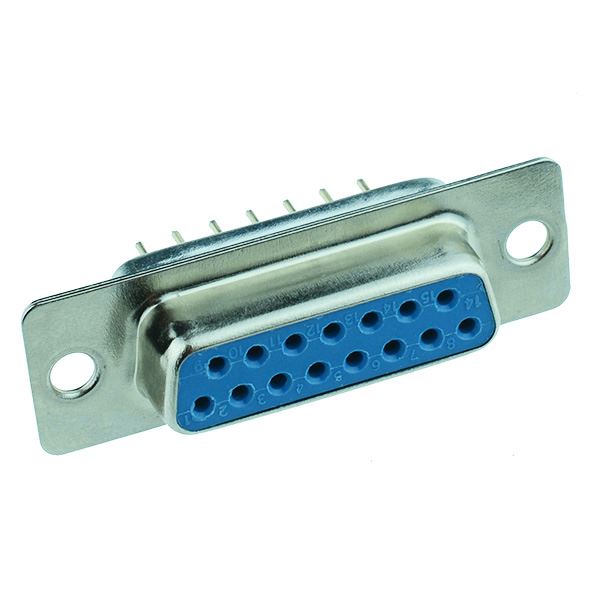

15-Way Female PCB D Socket Connector

SKU 480201

MPN: 480201

Back Order Availability: 30 Days

307 in stock, ready to be shipped
Original price £0.54 - Original price £0.54
Original price
£0.54 Inc VAT
£0.54 - £0.54
Current price £0.54 Inc VAT
Straight D socket with 15 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.

  • 15 ways
  • Straight orientation
  • Fixing centres: 33.32mm
  • Width: 39.14mm
  • Housing material: PBT+30% glass fiber (UL94V-0)
  • Contact material: brass or phosphor bronze
  • Jack posts and PCB locating spigots
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Contact pitch 2.77mm
    Gender Female
    Housing material PBT
    Mounting hole pitch 33.32mm
    Mounting type PCB
    Number of ways 15
    Operating temperature -40°C to +105°C
    Termination method Solder
