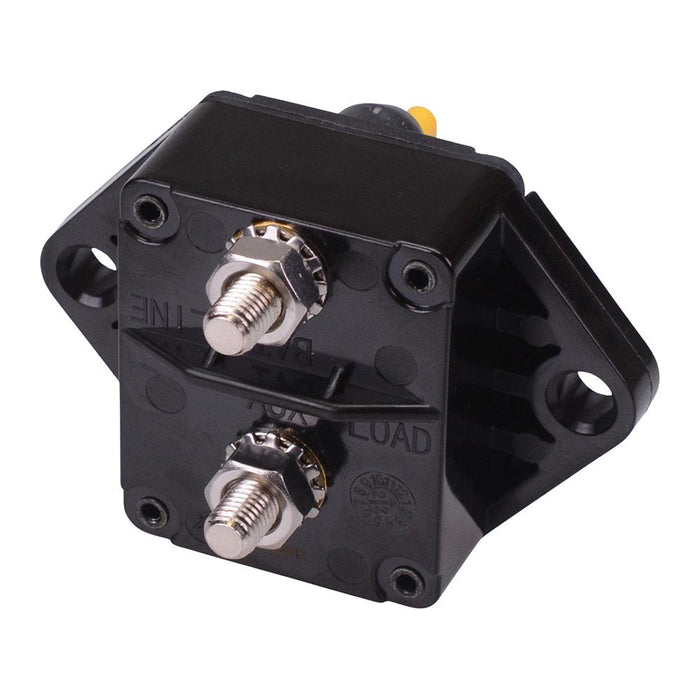

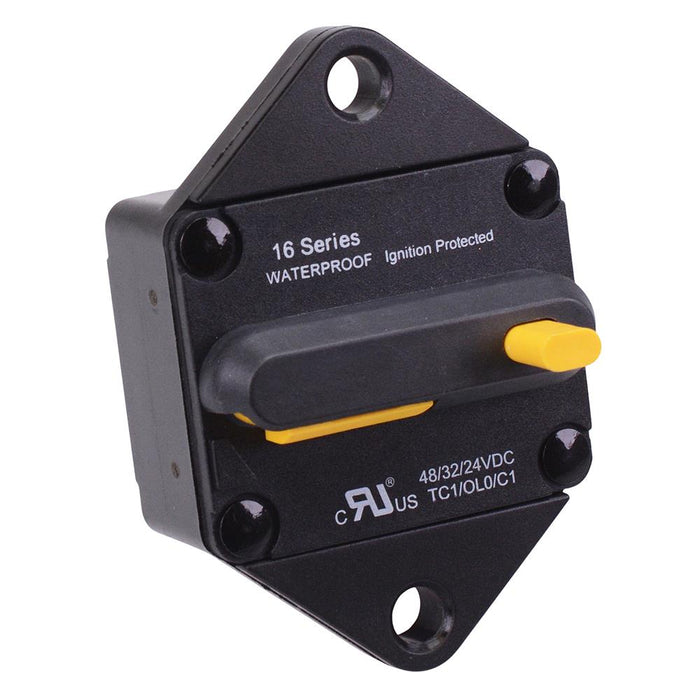

150A Panel Mount Switchable Manual Reset On-Off Circuit Breaker IP66
SKU 492141
MPN: 16-8P-150-PYK-22
Availability:
Only 1 left!
Original price
£11.78
-
Original price
£11.78
Original price
£11.78
£13.13
£13.13
-
£13.13
Current price
£13.13
150A panel mount circuit breaker featuring ignition protection and manual reset with On/Off switch. The circuit breaker features a 48VDC voltage rating and is IP66 protected, suitable for various automotive and marine applications.
Ignition protected Manual reset with On/Off switch Voltage rating: 48VDC IP66 protection level Stud size: 1/4" Mounting holes: 6.5mm diameter Mounting hole pitch: 61.4mm Dimensions: 74.4 x 48.6 x 55.9mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 150A |
| Interrupting Capacity | 1500A |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -30°C to +80°C |
| Voltage Rating | 48VDC |
