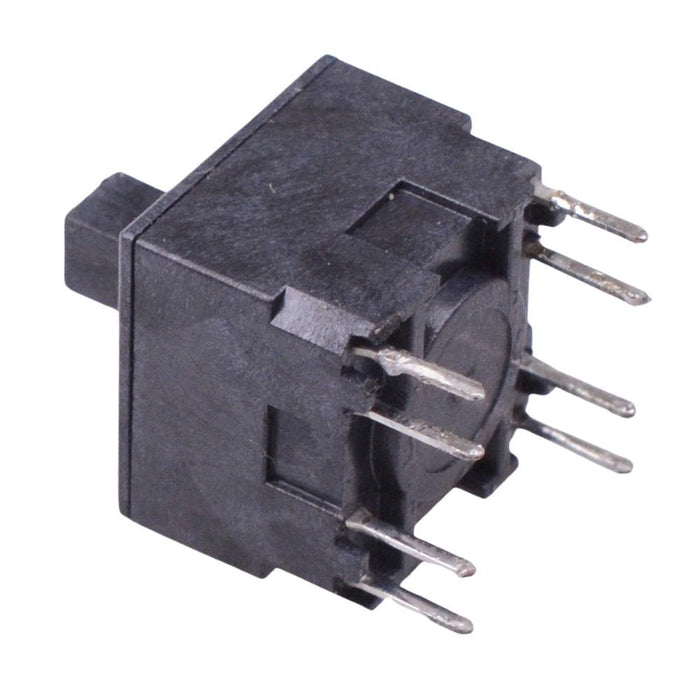

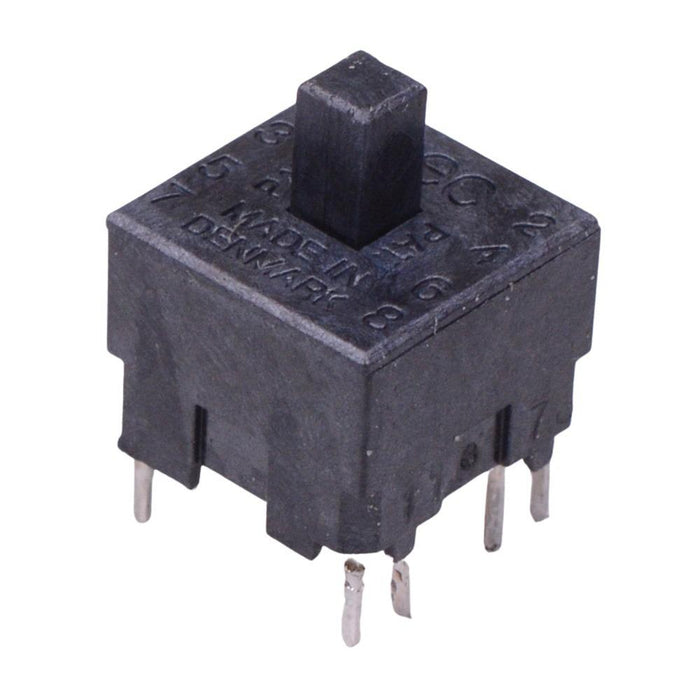

1545209 MEC 8 Contact 2 Pole Latching Switch Unimec

by MEC
SKU 489750

MPN: 1545209

Availability:
36 in stock
Original price £6.18 - Original price £6.18
Original price
£6.18
£6.18 - £6.18
Current price £6.18
The 1545209 is a highly reliable switch with a unique 8 contact design with a latching function. The Unimec switches are known for their crisp, audible, tactile feel and feature a lifespan up to 10,000 cycles.

  • 2 poles
  • 8 contact functions
  • Latching operation
  • Sealed to IP54
  • Gold terminals
  • Dimensions: 12.6 x 12.6 x 15.7mm (length x width x height)
  • Specification
    Actuation Latching
    Contact Material Gold Plated
    Contact Rating 150mA 120V
    Current Rating 250mA
    Height 15.7mm
    MOQ 1
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Force 2.5N
    Operating Temperature -40°C to +160°C
    Pitch 12.6 x 12.6mm
    Terminal Type Through Hole
    Voltage Rating 120V
