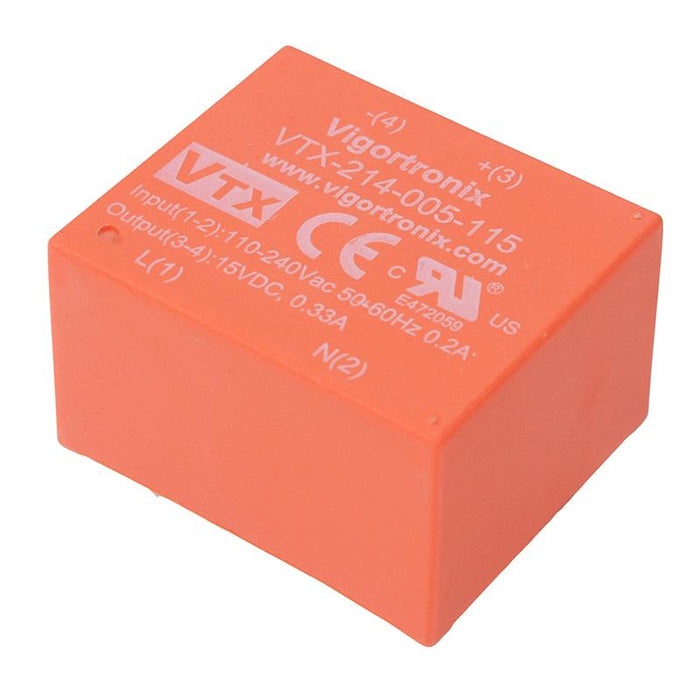

15V AC-DC 5W Single Output Power Supply VTX-214-005-115
by Vigortronix
SKU 483874
MPN: VTX-214-005-115
Availability:
Only 4 left!
Original price
£8.71
-
Original price
£8.71
Original price
£8.71
£8.71
-
£8.71
Current price
£8.71
The VTX-214-005-115 is a AC-DC power supply featuring a 5W single output producing 15V. The transformer features a compact size suitable for PCB applications with limited space.
Regulated single output Input: 90-265VAC, 47-63Hz (100-370VDC) Output voltage: 15VDC Output current: 333mA Low ripple & noise Encapsulated design Safety appovals: EN61558, EN60950, CE, UL
Specification
| Ambient Temperature | 50°C |
| Back Order Lead Time | 5 Days |
| Input Voltage | 90-265VAC (100-370VDC) |
| Output Current | 333mA |
| Output Voltage | 15VDC |
| Power Rating | 5W |
