15VDC 1A 15W Industrial Enclosed Power Supply
SKU 484410
MPN: 484410
Availability:
Only 3 left!
Original price
£11.40
-
Original price
£11.40
Original price
£11.40
£11.40
-
£11.40
Current price
£11.40

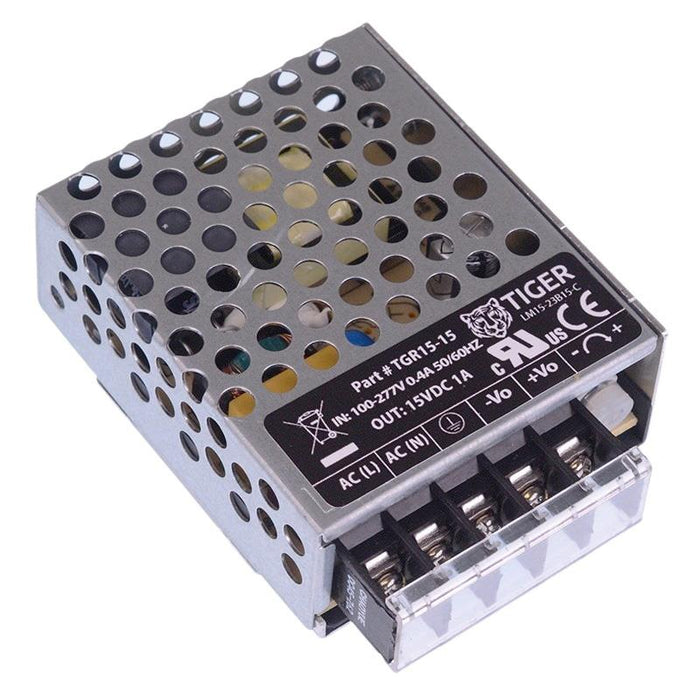

15W 15VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 15W Nominal output: 15VDC / 1A Output voltage adjustable range: 13.5-18VDC AC Input voltage: 85-305VAC DC Input voltage: 100-430VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage protection IEC/EN/UL62368, GB4943 safety approval Dimensions: 65 x 55 x 25mm (Length x Width x Height)
Specification
Ambient Temperature | -30°C to 70°C |
Back Order Lead Time | 5 Days |
Input Frequency | 47-63Hz |
Input Voltage | 85-305VAC / 100-430VDC |
Output Connector | Terminal Block |
Output Current | 1A |
Output Voltage | 15VDC |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 15W |
Short Circuit Protection | Yes |
