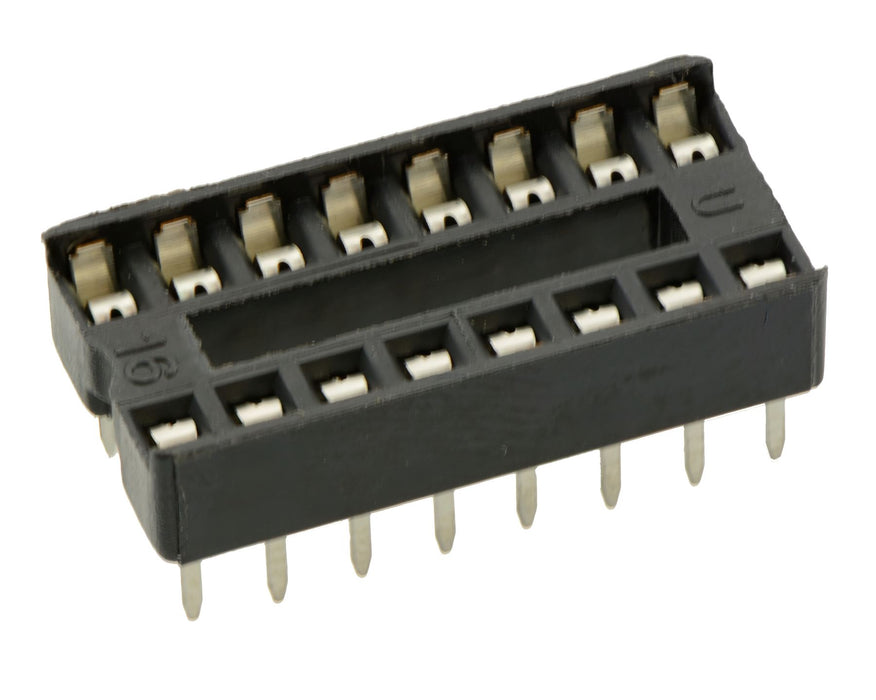

16-Pin DIP IC Socket 7.62mm

SKU 222003

MPN: 222003

Availability:
293 in stock
Original price £0.19 - Original price £0.19
Original price
£0.19
£0.19 - £0.19
Current price £0.19
Dual inline sockets with a thermoplastic body and tin plated phosphor bronze contacts. The sockets feature screw machined pins and can be mounted end to end to form one continuos run.

  • PCB hole: 0.6mm
  • Height (above PCB): 5.1mm
  • 2.54mm pitch
  • Current rating: 1A
  • Dimensions: 20.32 x 10.16 x 5.1mm (Length x Width x Height)
  • Specification
    Back Order Lead Time 30 Days
    Contact Material Tin Plated Phosphor Bronze
    Current Rating 1A
    Housing Material PBT
    MOQ 5
    Mounting Type PCB Mount
    Number of Pins 16
    Number of Ways 16
    Operating Temperature -45°C to +105°C
    Pitch 7.62mm
    Termination Method Solder
