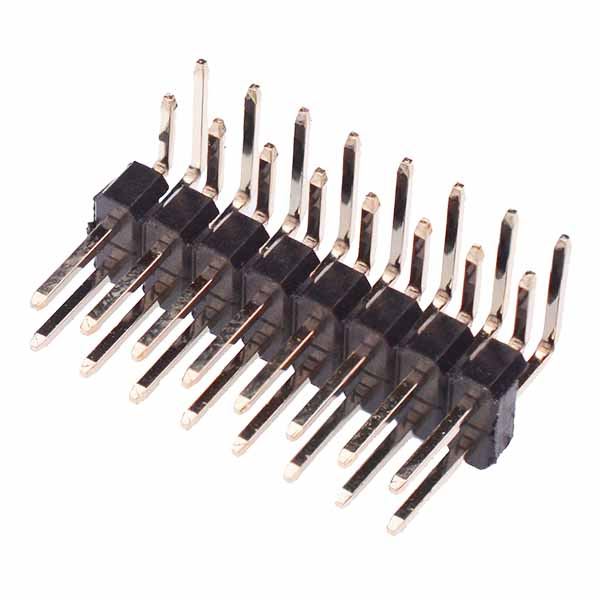

16-Way Double Row Right Angle Male Header 2.54mm
SKU 483063
MPN: 483063
Availability:
738 in stock
Original price
£0.23
-
Original price
£0.23
Original price
£0.23
£0.23
-
£0.23
Current price
£0.23
16 way double row right angle PCB header suitable for a range of applications including use with PCBs, flat cables etc.
Gold plated brass contacts 0.64mm pin diameter Solder termination Pitch: 2.54mm 6mm pin height Can easily be separated
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 3A |
| Housing Material | PA6T |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Pins | 16 |
| Number of Ways | 16 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
