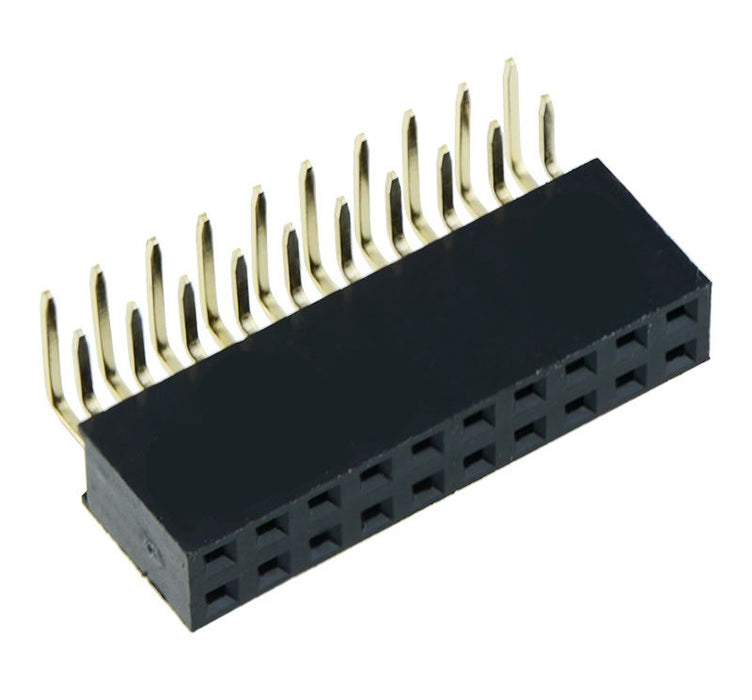

16-Way Double Row Right Angle PCB Socket 2.54mm

SKU 329043

MPN: 329043

Availability:
857 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44
£0.44 - £0.44
Current price £0.44
Right-angle type double row sockets with a 2.54mm pitch perfect as a removable connection for flat cables along with many other electronic applications.

  • Gold plated brass contacts
  • 0.4mm pin diameter
  • Solder termination
  • Pitch: 2.54mm
  • Pin height: 3.2mm
  • Socket height: 8.4mm
  • Specification
    Back Order Lead Time 30 Days
    Contact Material Gold Plated Brass
    Current Rating 1A
    Housing Material PA6T
    Mounting Type PCB Mount
    Number of Pins 16
    Number of Ways 16
    Operating Temperature -40°C to +105°C
    Pitch 2.54mm
    Termination Method Solder
