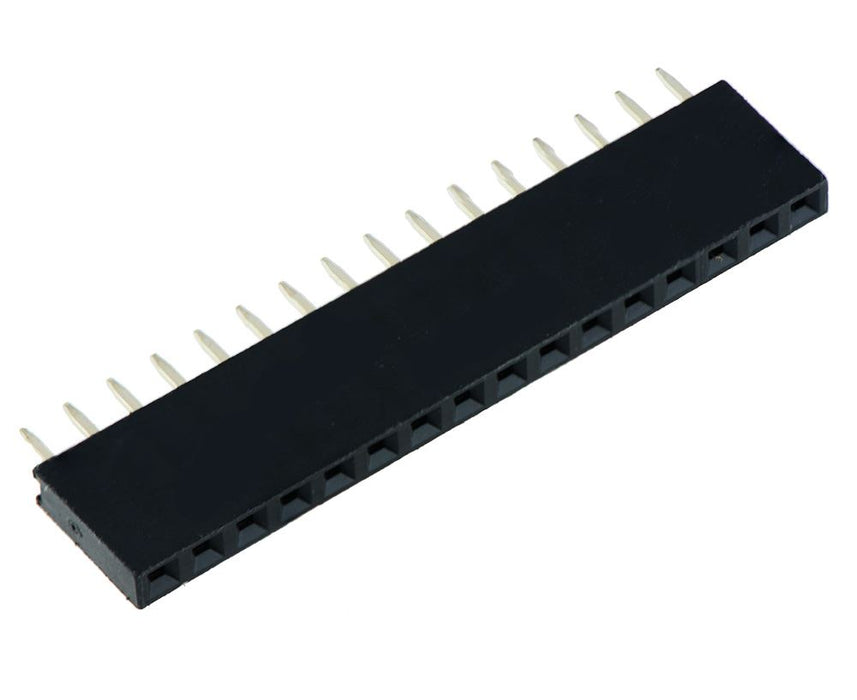

16-Way Single Row PCB Socket 2.54mm
SKU 329020
MPN: 329020
Availability:
979 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
-
£0.32
Current price
£0.32
Single row sockets with a 2.54mm pitch perfect as a removable connection for flat cables along with many other electronic applications.
Gold plated brass contacts 0.4mm pin diameter Solder termination Pitch: 2.54mm Pin height: 3.2mm Socket height: 8.4mm
Specification
Back Order Lead Time | 30 Days |
Contact Material | Gold Plated Brass |
Current Rating | 1A |
Housing Material | PA6T |
MOQ | 5 |
Mounting Type | PCB Mount |
Number of Pins | 16 |
Number of Ways | 16 |
Operating Temperature | -40°C to +105°C |
Pitch | 2.54mm |
Termination Method | Solder |
