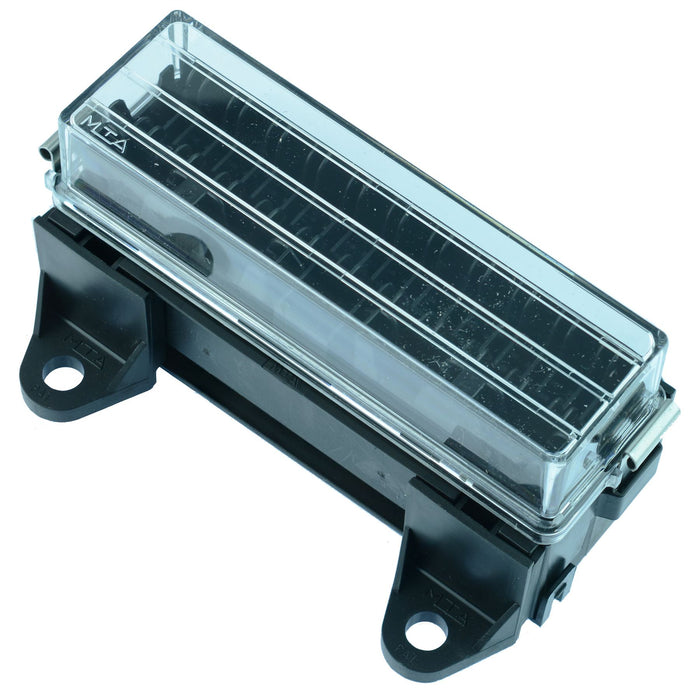

16 Way Standard Blade Fuse Holder Box - Underside Terminals
by MTA
SKU 481540
MPN: FBB16U
Availability:
9 in stock
Original price
£35.94
-
Original price
£35.94
Original price
£35.94
Inc VAT
£35.94
-
£35.94
Current price
£35.94
Inc VAT
16 way fuse box suitable for use with standard blade fuses, featuring a transparent cover, gasket and terminal locking bar. The holder features 32 terminals for crimping and is designed for panel mounting using the mounting holes.
16 ways Colour: black Transparent clip-on lid Crimp terminals for 1-2.5mm2 cable size 8.5mm fixing hole diameter 93 x 71mm fixing hole pitch Current rating: 225A continuous Voltage rating: 32VDC Dimensions: 64 x 135 x 42mm (H x W x D)
Specification
| Back order lead time | 5 Days |
| Body material | PA66 V2 |
| Compatible wire size | 1mm² to 2.5mm² |
| Current rating | 30A |
| Fuse size | Standard Blade |
| Mounting style | Chassis Mount |
| Number of fuses | 16 |
| Operating temperature | -40°C to +120°C |
| Protection level | IP32 |
| Voltage rating | 32VDC |
| Wire size | 1mm² to 2.5mm² |
