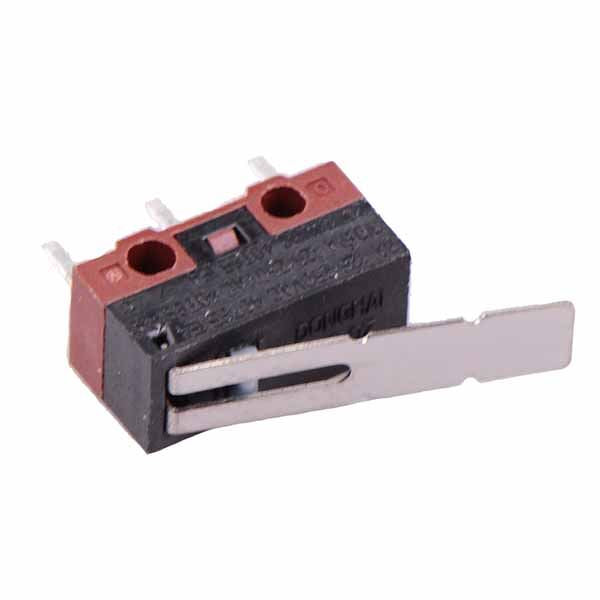

17mm Lever Subminiature PCB Microswitch SPDT 3A

SKU 482274

MPN: 482274

Out of stock
Sold out
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT
Subminiature microswitch featuring a 17mm lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.

  • 17mm lever actuator
  • Rating: 3A 250VAC
  • NO / NC contacts
  • Solder PCB terminals
  • Operating force: 100gf
  • Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
  • Specification
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Mounting style PCB
    Number of positions 2
    Operating force 100gf
    Pitch 5.1mm
    Terminal type Through Hole
    Voltage rating 250VAC
    Request a quote
