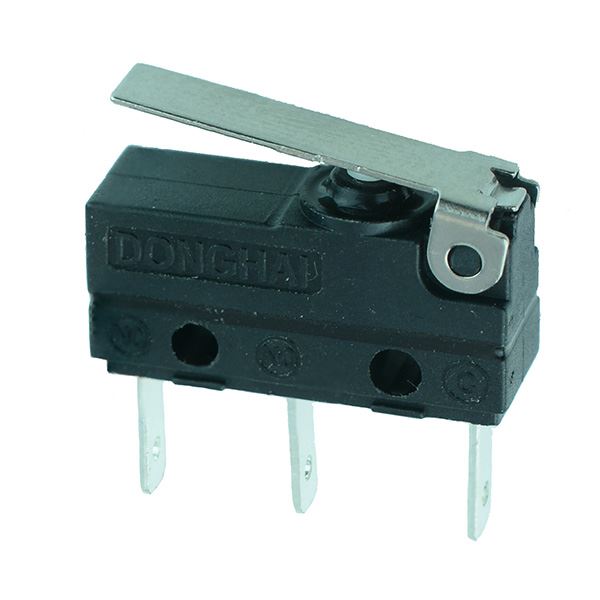

17mm Lever Waterproof Microswitch SPDT 3A
SKU 481702
MPN: 481702
Availability:
114 in stock
Original price
£1.13
-
Original price
£1.13
Original price
£1.13
Inc VAT
£1.13
-
£1.13
Current price
£1.13
Inc VAT
Miniature microswitch featuring a 17mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features quick connect terminals and is suitable for domestic and industrial applications.
17.7mm lever actuator Rating: 3A 250VAC / 48VDC NO / NC contacts 2.8mm quick connect terminals Operating force: 105gf max Release force: 20gf min Pre-travel: 4.3mm max Over-travel 0.6mm min Differential travel: 0.7mm max Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 100,000 Cycles |
| Number of positions | 2 |
| Operating force | 105gf Max |
| Protection level | IP67 |
| Release force | 20gf Min |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
